Product Description

34 Inch Vinyl Plotter w/ 20 Blades

Large Cutting Width & Excellent Performance & Wide Paper Feed

This 34" Professional Vinyl Cutting Plotter comes with an easy-to-use and flexible design, which allows you to cut customized labels and signs. Adjustable speed and force is available by the touch of a button. Suitable for advertisement field, various signs, drawing for building structure or line drawing, automotive decoration, glass field, handicraft, supplementary for heat transfer, indoor decoration, label making, car beauty industry, fashion design, etc.

Premium Quality

High-precision Operation

Dual Roller System

Superior Compatibility

Wide Application

Key Features

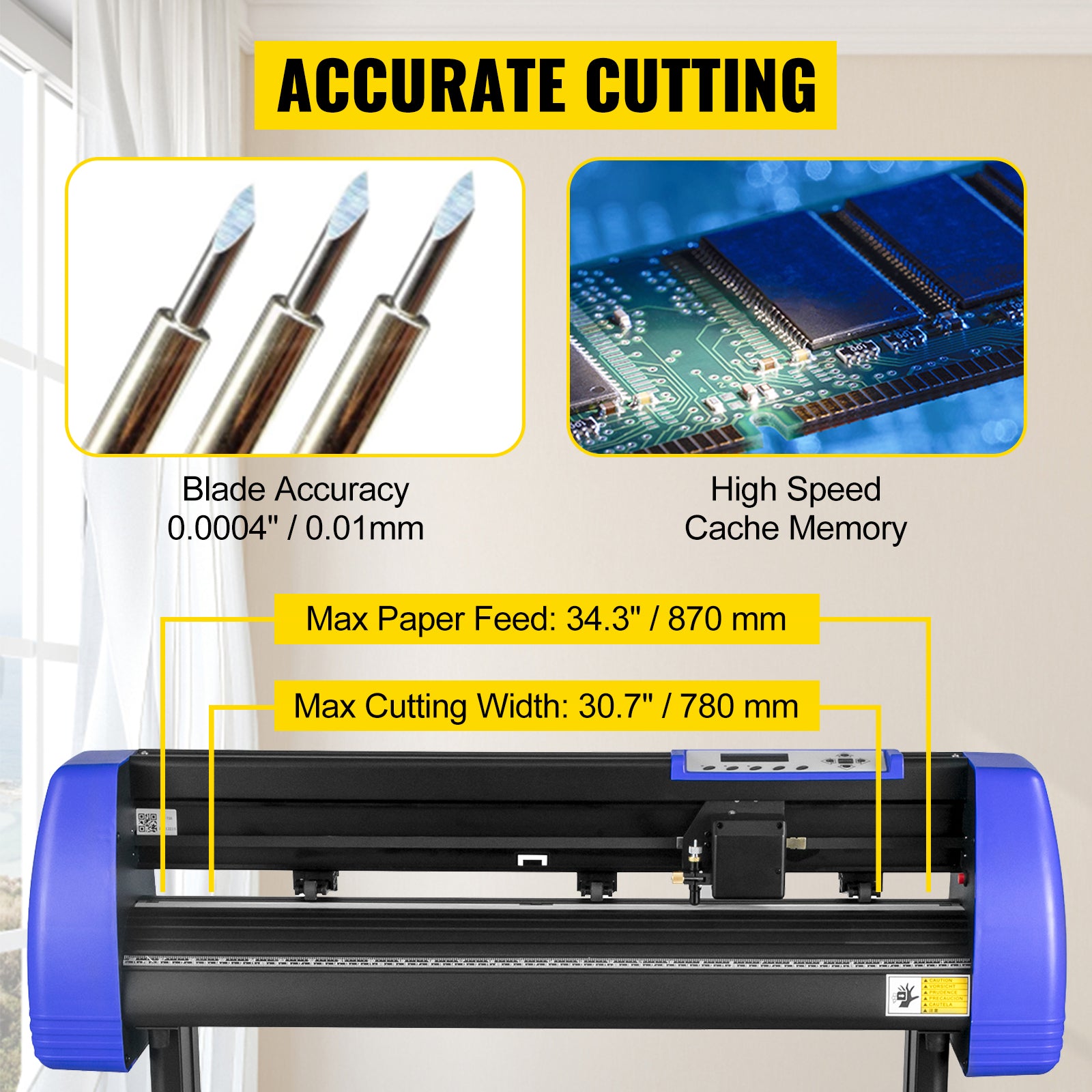

Accurate Cutting

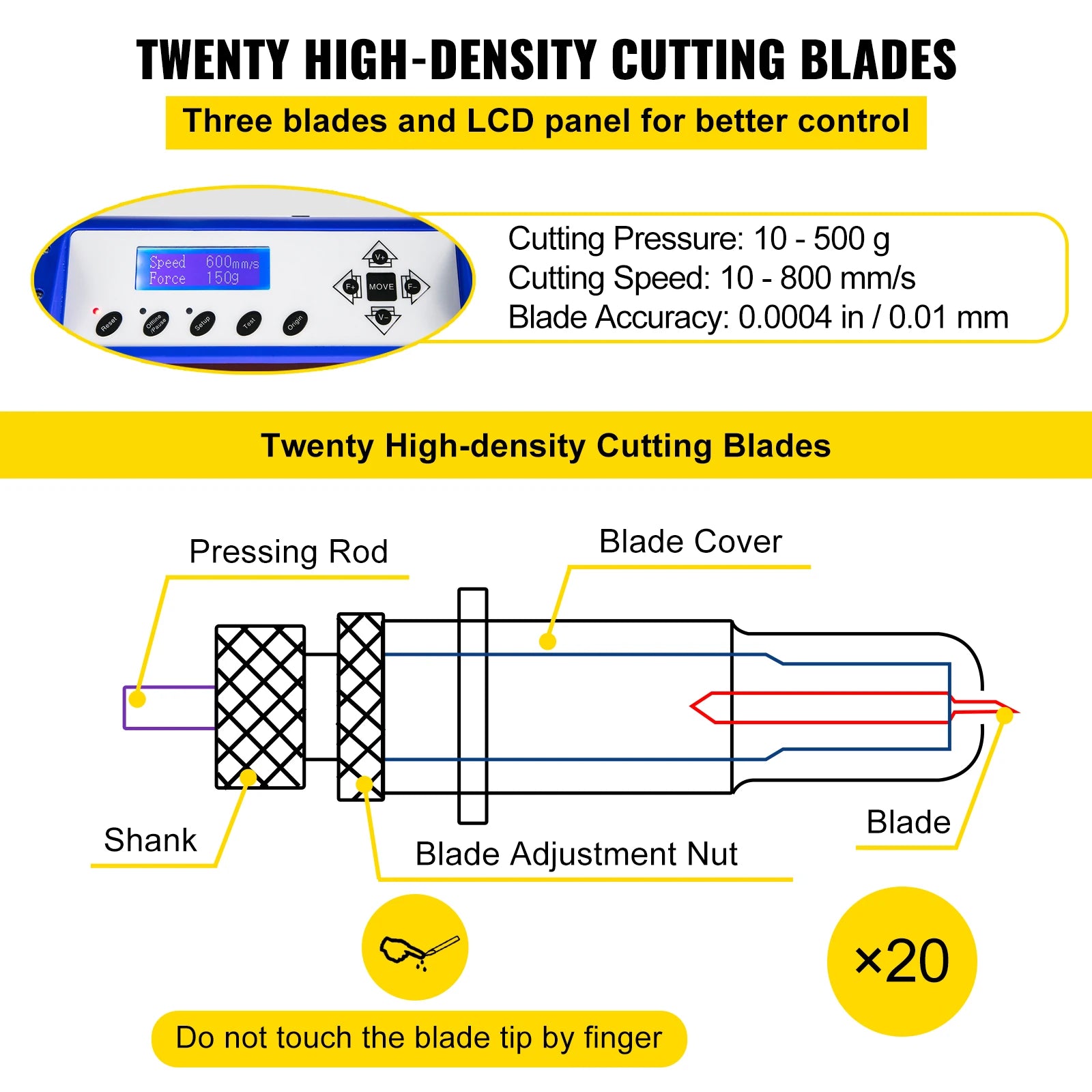

The ruler guide is integrated for easier measurements, and the 3 vinyl cutting blades can be adjusted to slice through various thicknesses of vinyl. You can even install the included Biro pen component to sketch out your design before cutting.

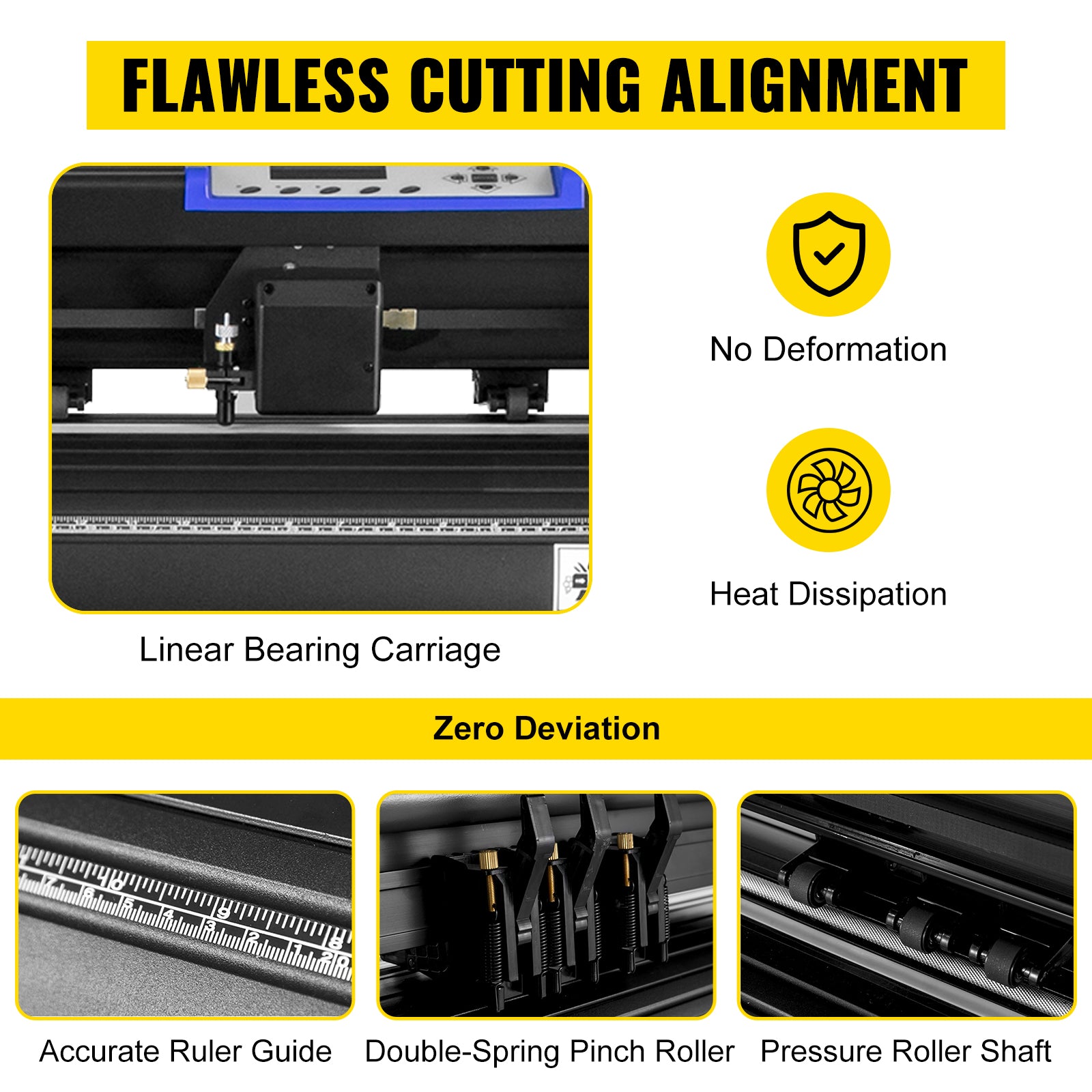

Flawless Cutting Alignment

Rear-mounted adjustable double-spring pinch rollers, aluminum knurling stick, high precision pressing wheels, and scale line are integrated for an easier slice through various thicknesses of vinyl materials. Besides, it ensures the vinyl plotter feeding paper steadily without paper jam.

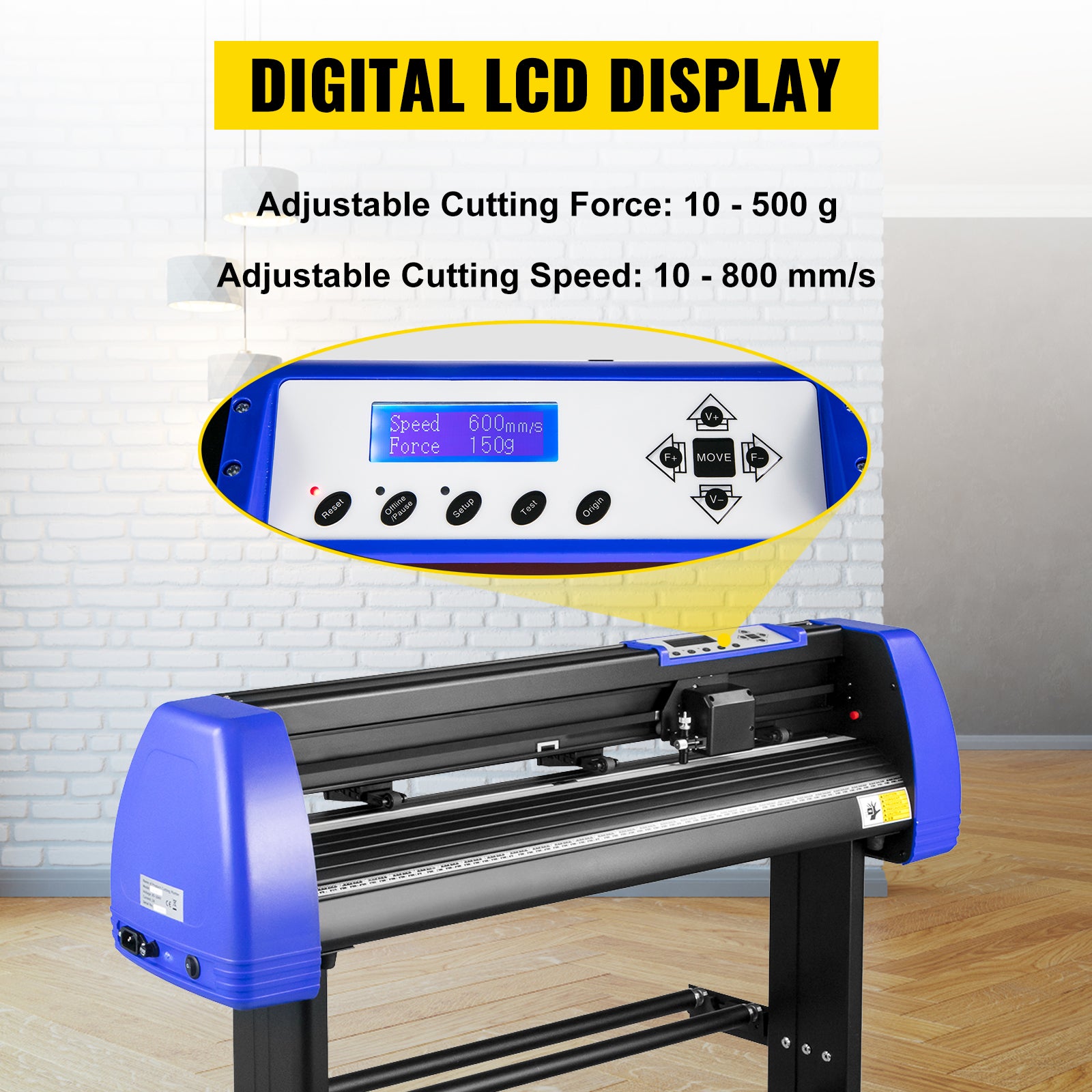

Digital LCD Display

The vinyl cutting machine is embedded with a backlight display to increase clarity and brightness further. Come with an intuitive digital panel for monitoring the cutting quality from time to time. It delivers a maximum cutting speed of 800 mm/s and 500g cutting force.

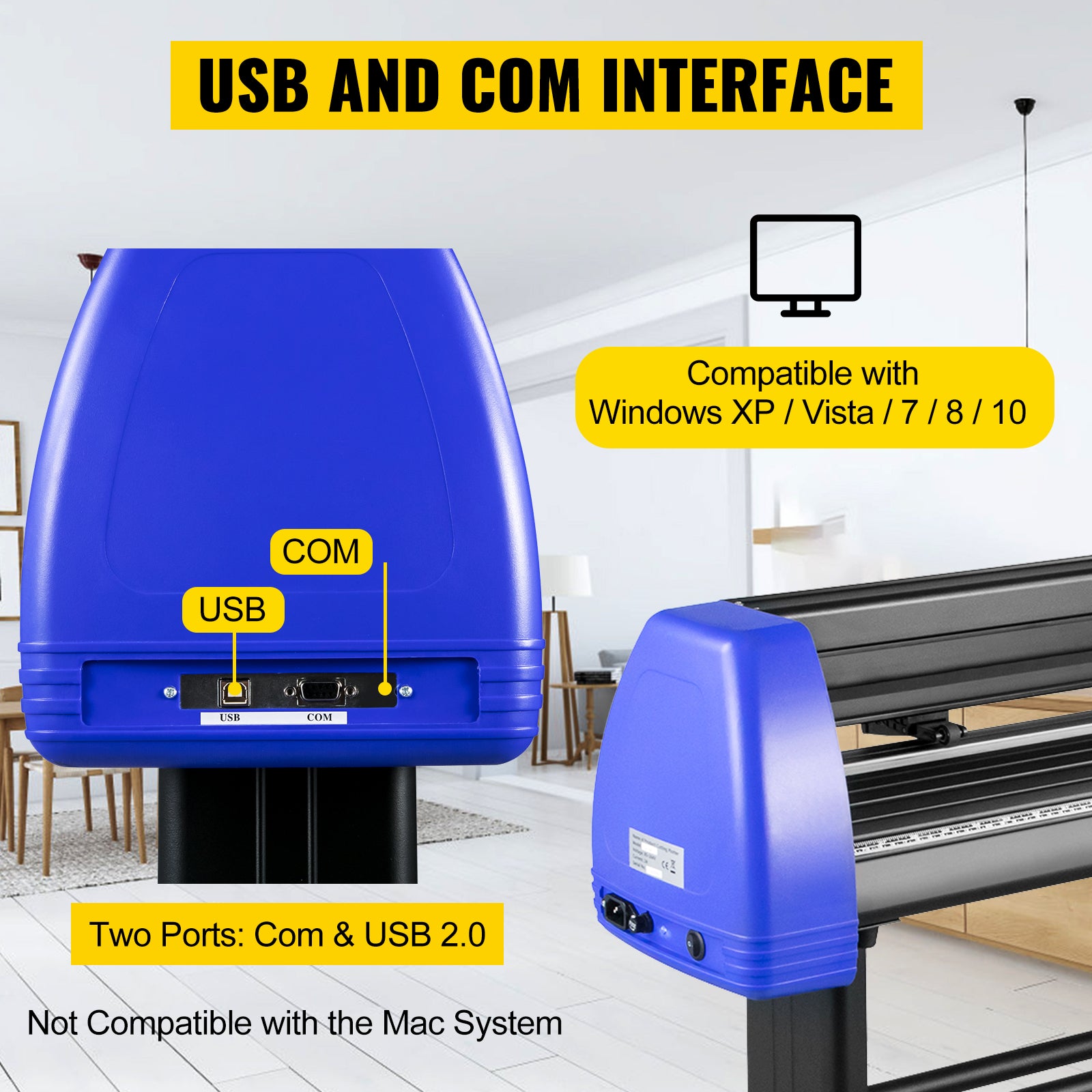

USB and COM Interface

Connect the vinyl plotter through two available ports, COM and USB. Included SignMaster software is compatible with Windows XP / VISTA / 7 / 8 / 10. NOT compatible with the Mac system.

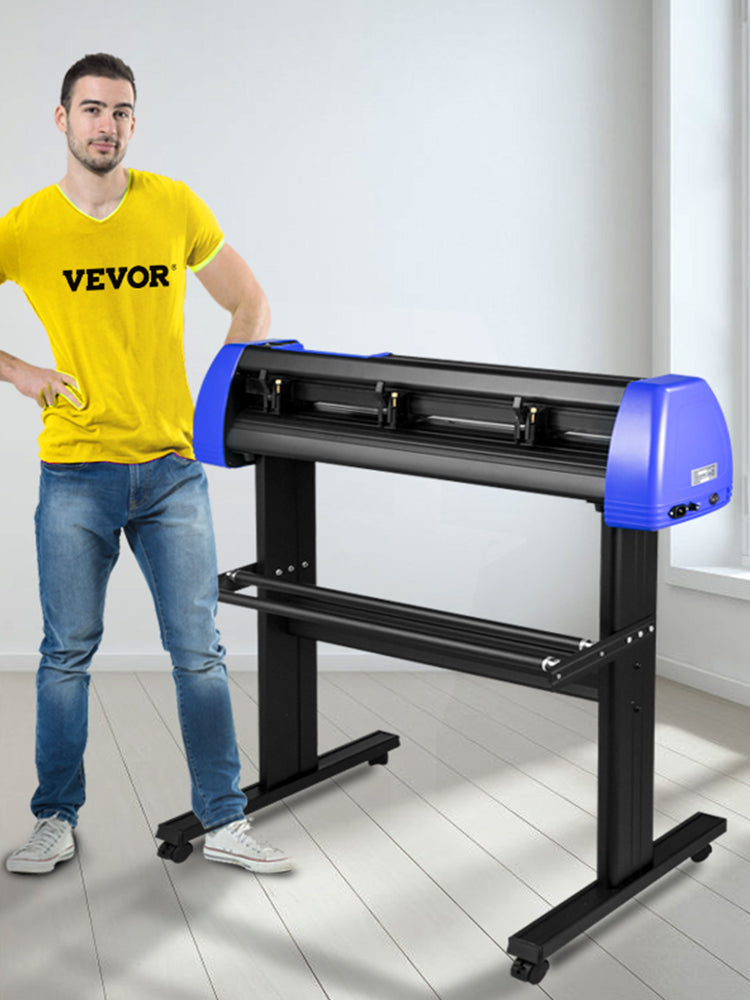

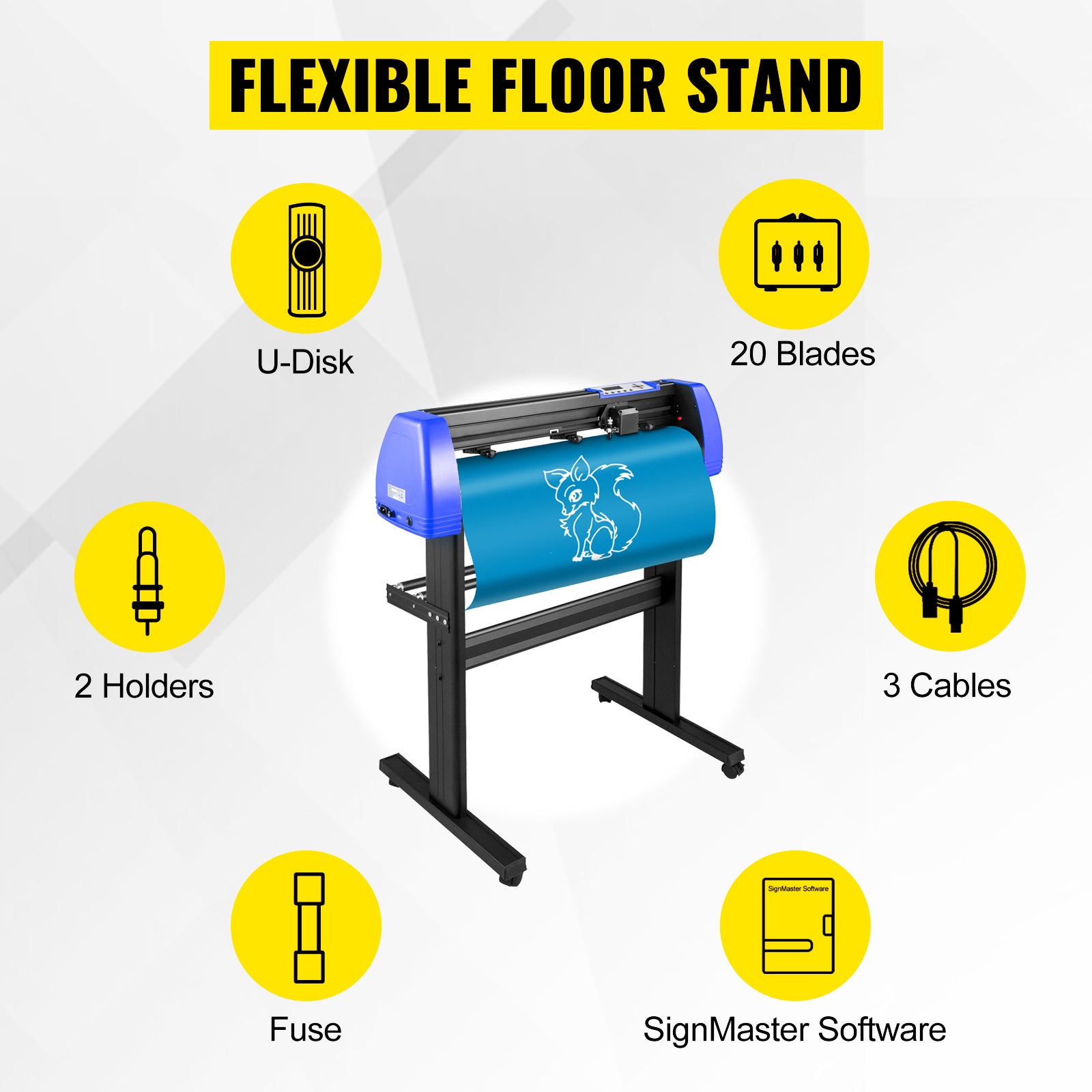

Flexible Floor Stand

This cutter is packaged with a heavy-duty sheet metal floor stand, featuring four rollers that can hold the paper steadily. Make it easy for users to carry without effort. The improved appearance is more in line with aesthetics.

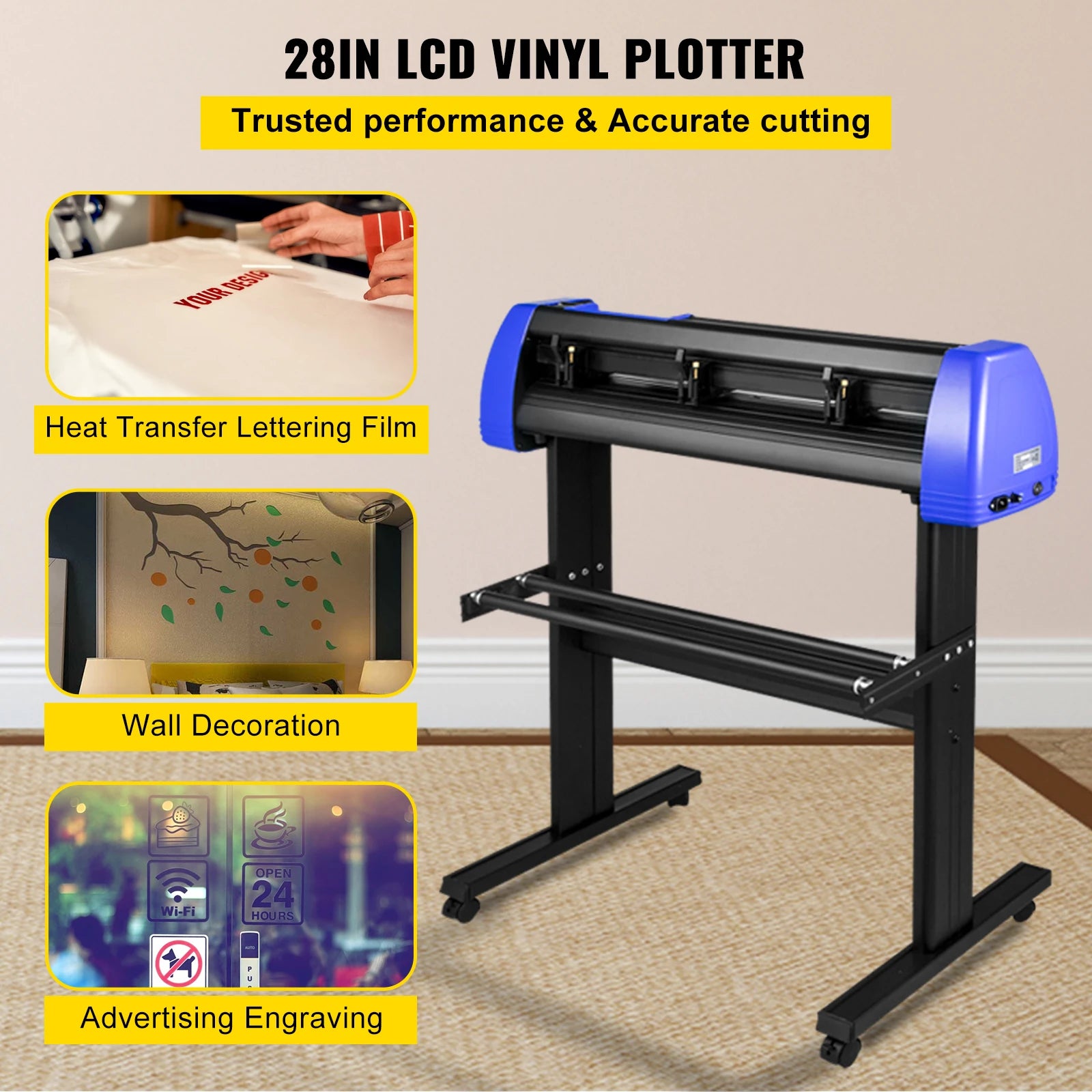

Wide Application

The vinyl cutter can flawlessly cut various materials, giving the cutter superior control as you create fancy logos, shapes, and letters. As a result, the vinyl printer is widely used in many areas that you can apply to advertise engraving, heat transfer lettering film, etc.

Specifications

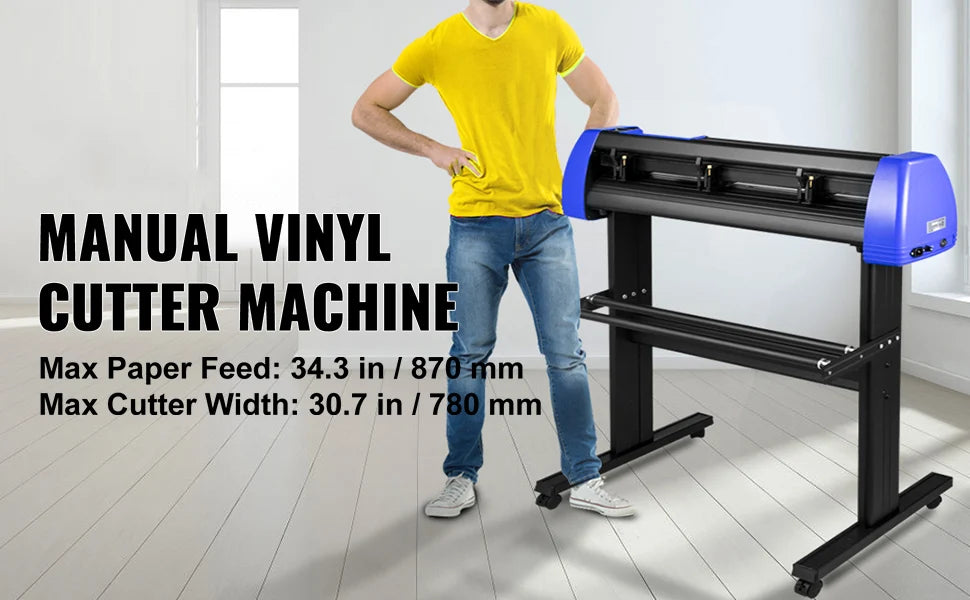

Max Paper Feed: 34.3 in / 870 mm

Max Cutter Width: 30.7 in / 780 mm

Cutter Pressure: 10 - 500 g

Cutting Speed: 10-800 mm/s

Memory: 2 MB

Repetition Accuracy: 0.0004 in / 0.01 mm

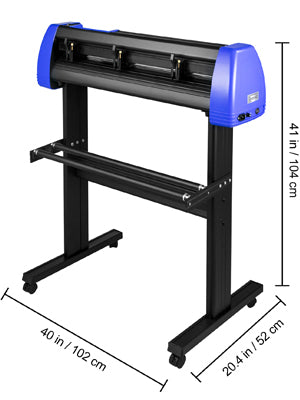

Product Size: 40 x 20.4 x 41 in / 102 x 52 x 104 cm

Net Weight: 34.17 lbs / 15.5 kg

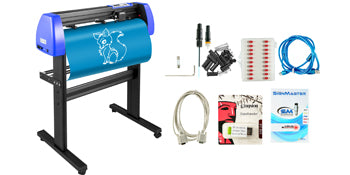

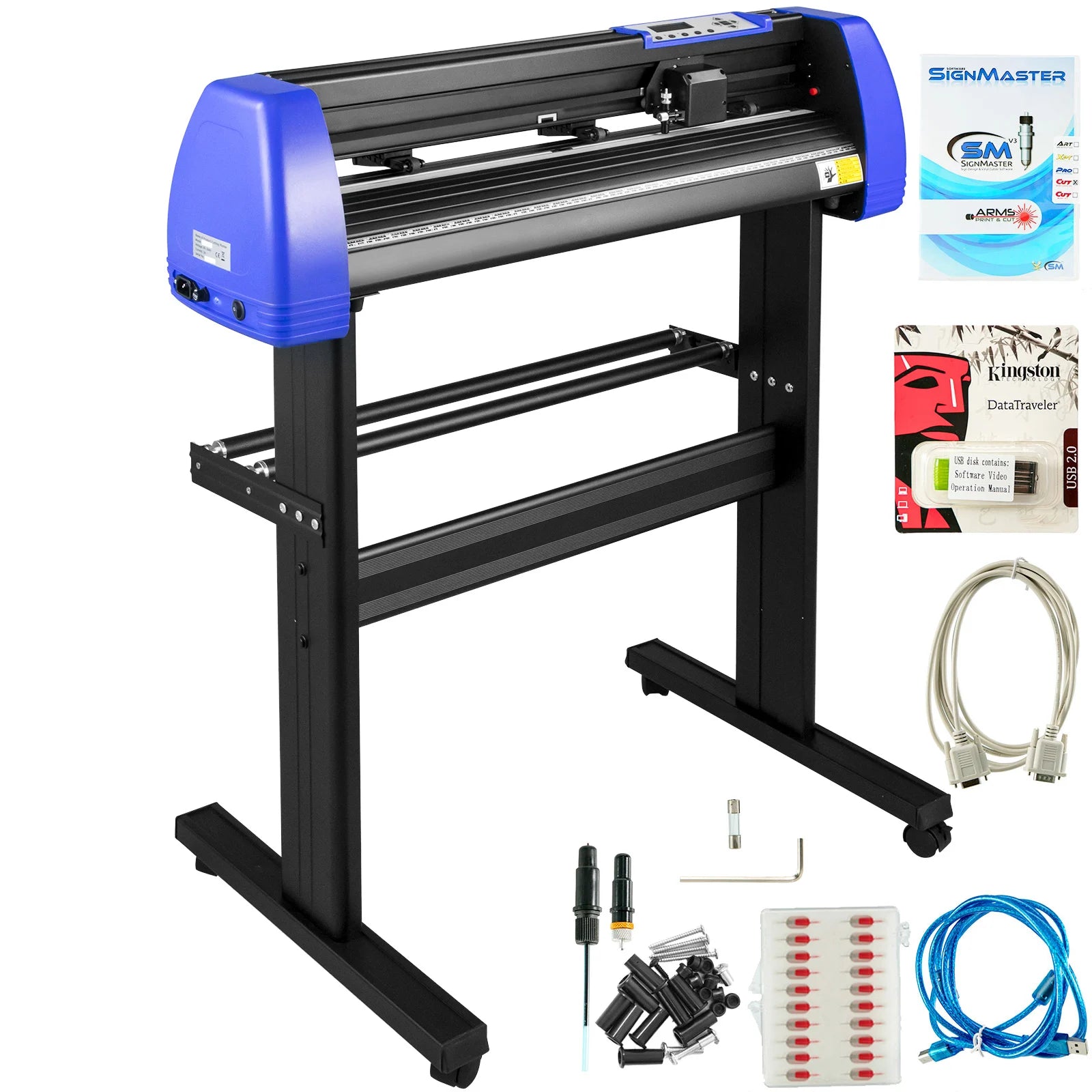

Package Content

1 x 34 inch Vinyl Cutter Plotter Machine

1 x SIGNMASTER Software

1 x Blades Holder

20 x Blades

1 x Pen Holder

3 x Cables

1 x USB Flash Disk

1 x User Manual

1 x Floor Stand Kit

Features & Details

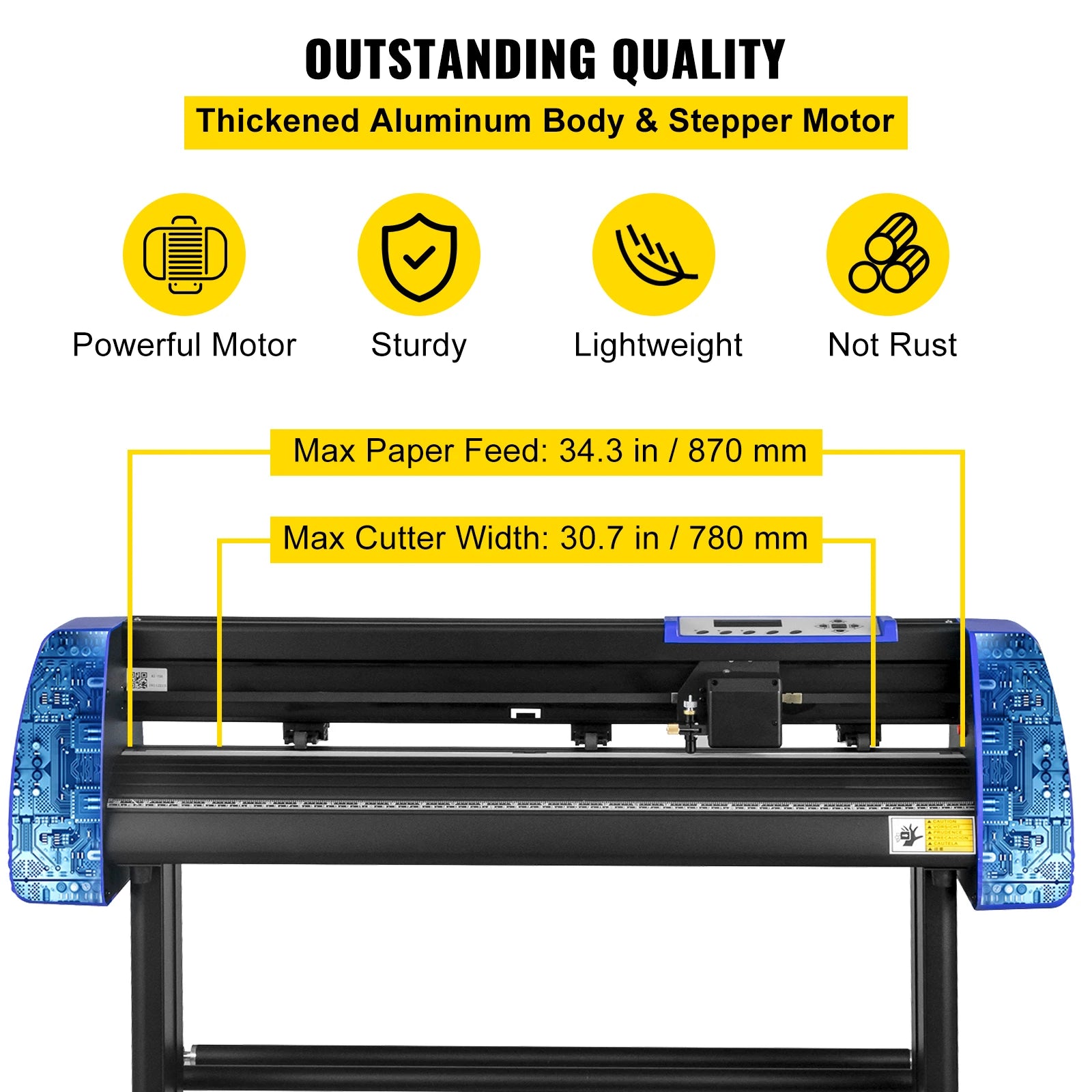

Premium Quality: This excellent vinyl cutter machine features a thickened, high-quality aluminum material body with powerful stepper motors. Max Paper Feed: 34.3 in / 870 mm; Max Cutting Width: 30.7 in / 780 mm.

High-precision Operation: The LCD panel facilitates the adjustment of pressure and speed with a clear readout and buttons. Adjustable Cutting Pressure: 10 - 500 g; Cutting Speed: 10 - 800 mm/s; Blade Accuracy: 0.0004 in / 0.01 mm.

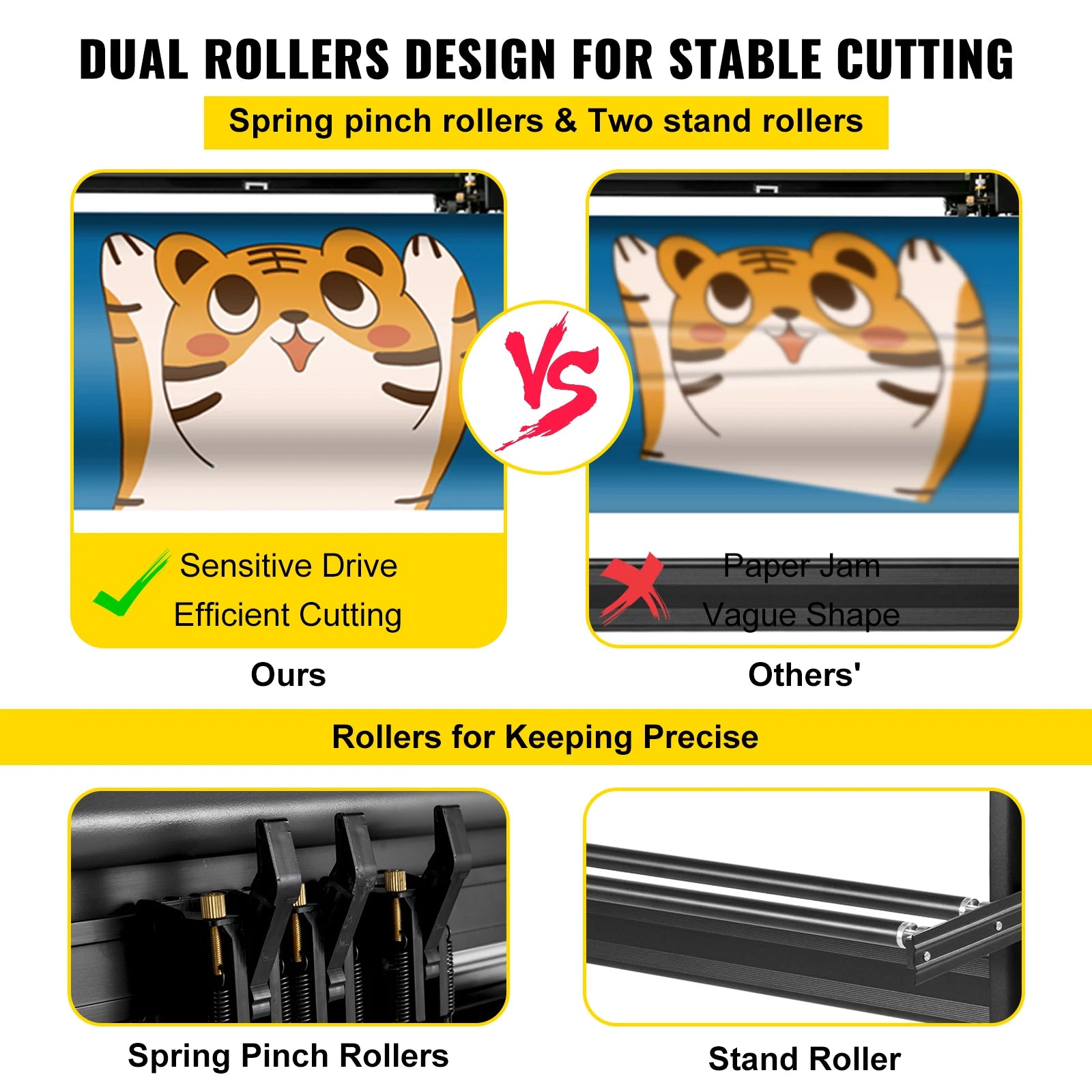

Dual Roller System: Smoothly running aluminum roller joint with double-spring pinch rollers is capable of not rust and stuck, ensuring a stable cutting process and reducing the heat generated by friction with a high transmission efficiency.

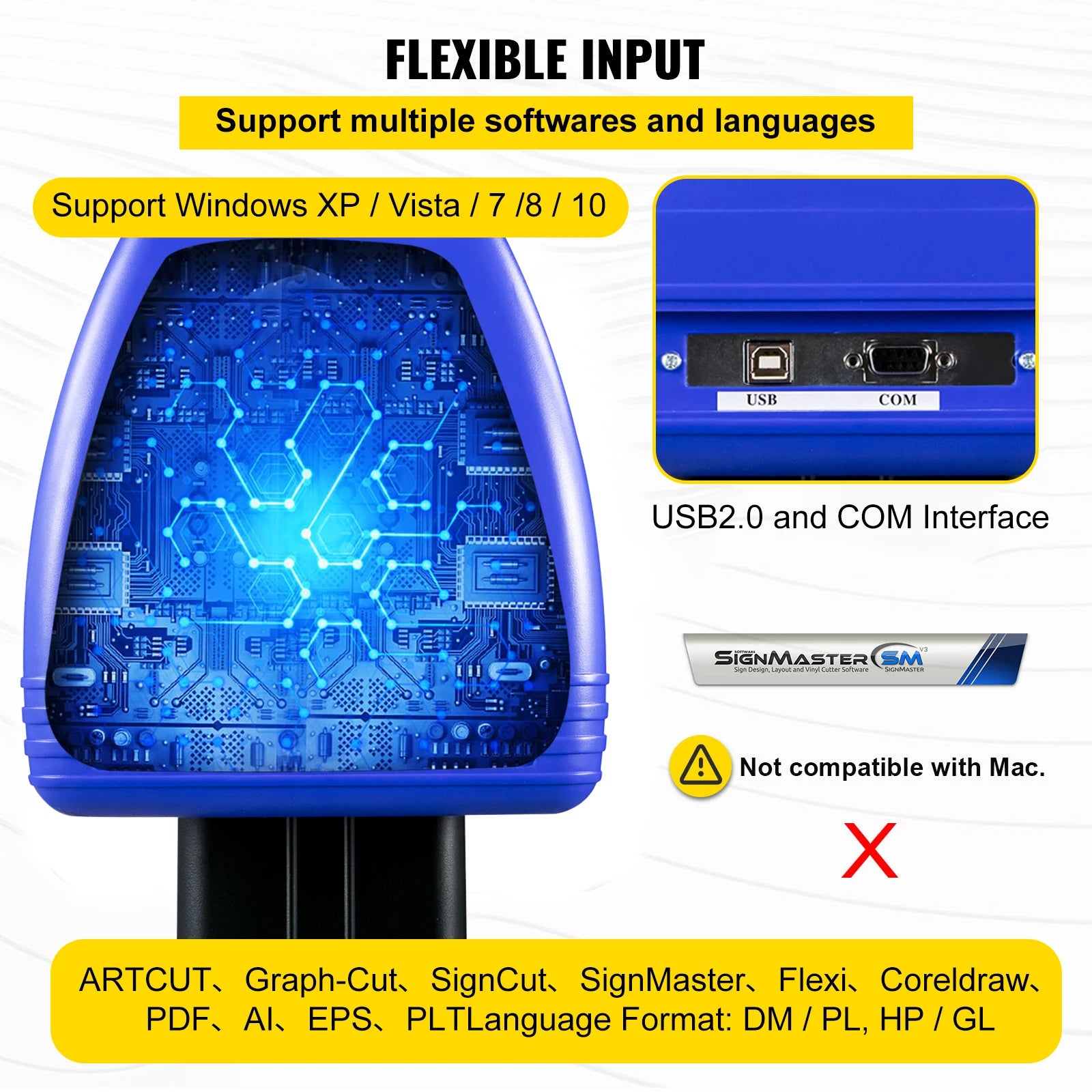

Superior Compatibility: Equipped with COM & USB interface for more choice. Support language: DM/PL, HP/GL; System: Pentium processor-based PC or Windows XP / Vista / 7 / 8 / 10. NOT compatible with the Mac system.

Wide Application: This machine can cut various materials such as heat transfer vinyl, paper, craft paper, card stock, and paint masks. Extensively used in advertising, decoration, DIY, label, and logo making.
