SPECIFICATIONS

Application: Home Energy

Brand Name: pecron

Display screen: Yes

High-concerned chemical: None

Model Number: E600LFP

Nominal Capacity: >3500mAh

Origin: Mainland China

Set Type: Charger Sets

Size: 12"L x 8"W x 9"H

Type: LiFePO4

Feature:

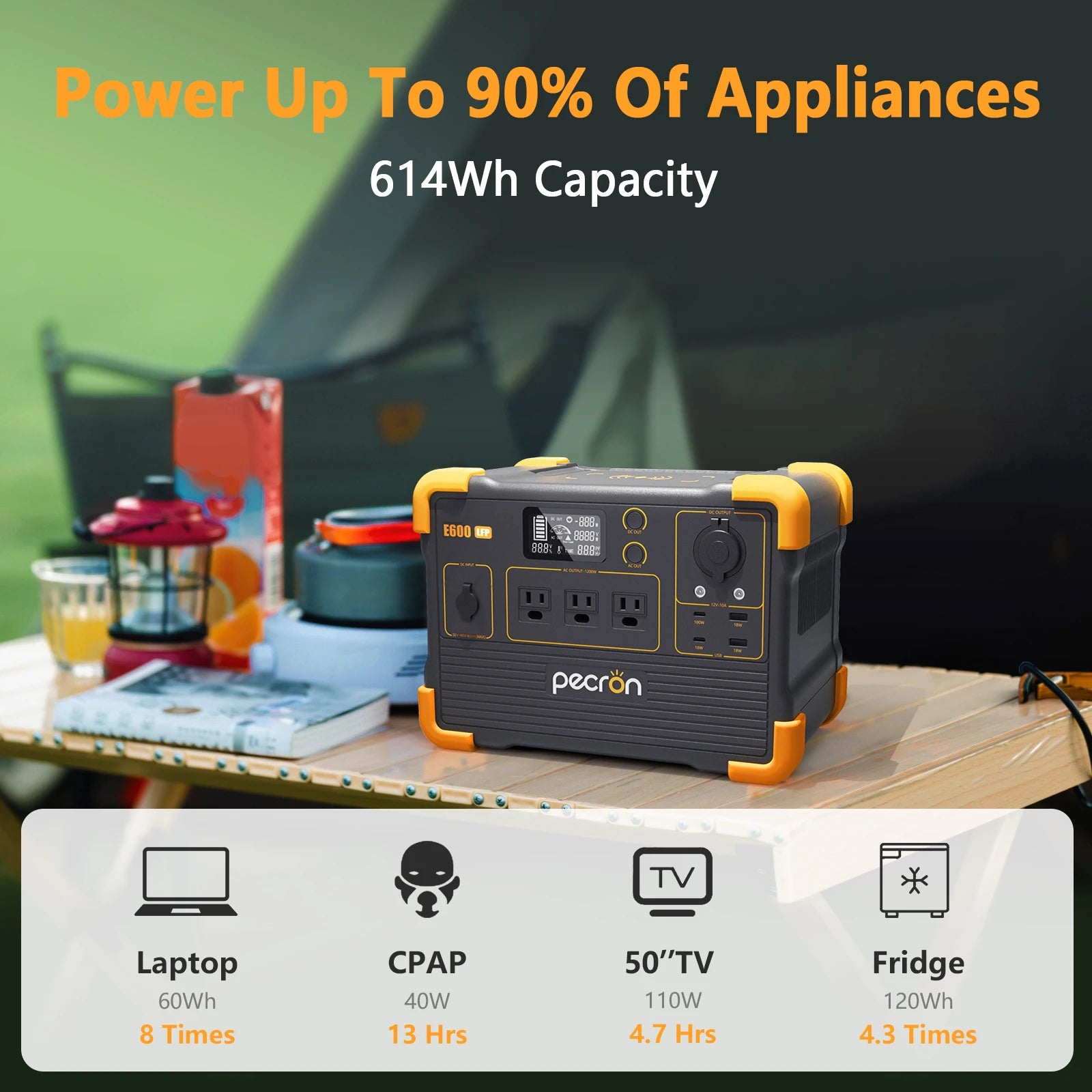

• Large Capacity: E600LFP portable power station has 614Wh capacity and 1200W rated power, it is a good backup battery used for home and outdoor activities, such as camping, tourism, fishing, emergency, etc

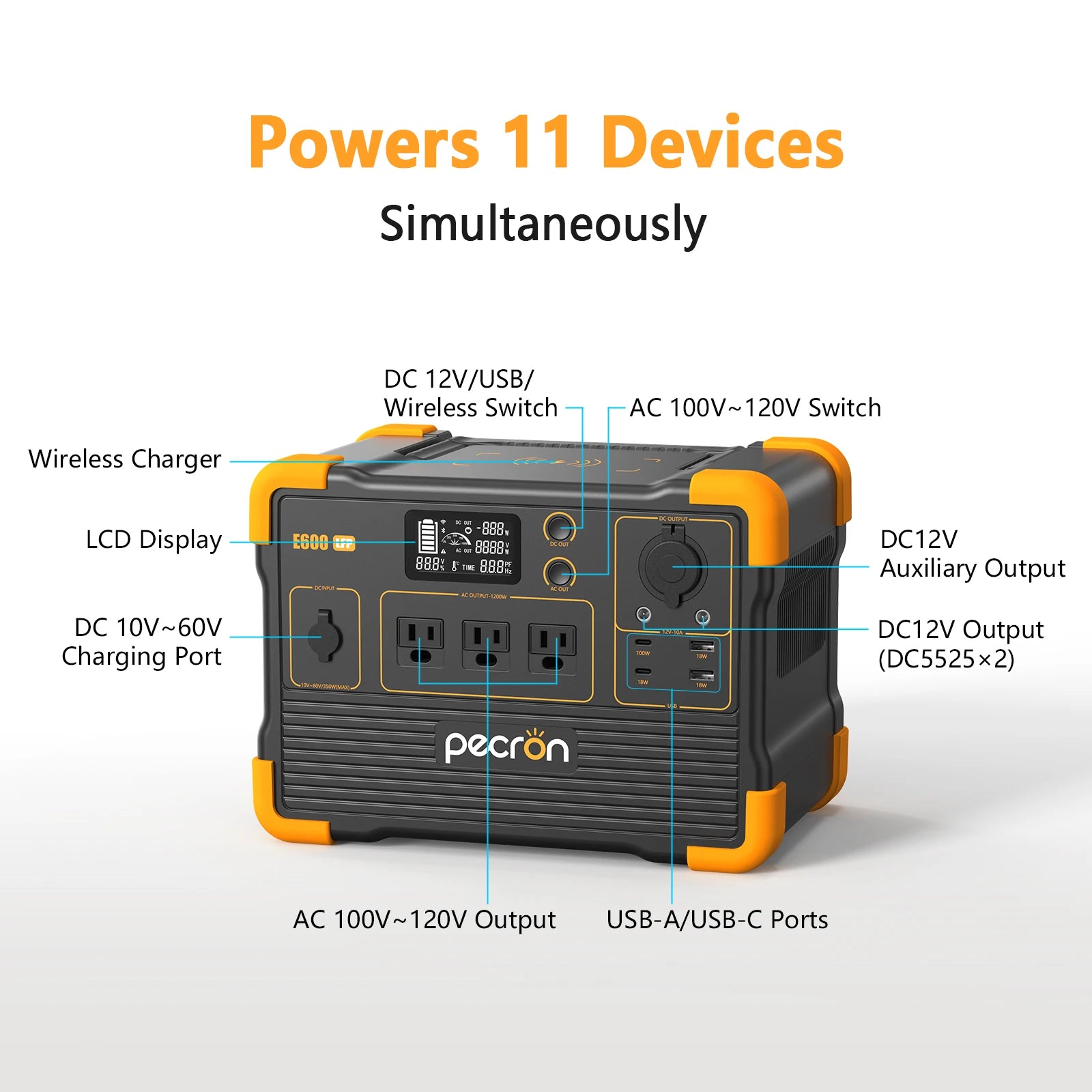

• Power it ALL: The E600LFP portable power station with 3x1200 AC outlets, 2xUSB-C Port(18W/100W), 2xUSB-A, 12V Cigar port*1 and Wireless Charger*1. E600LFP portable power station is compatible with virtually all essential devices, such as mini-fridges, laptops, drones, and CPAP.

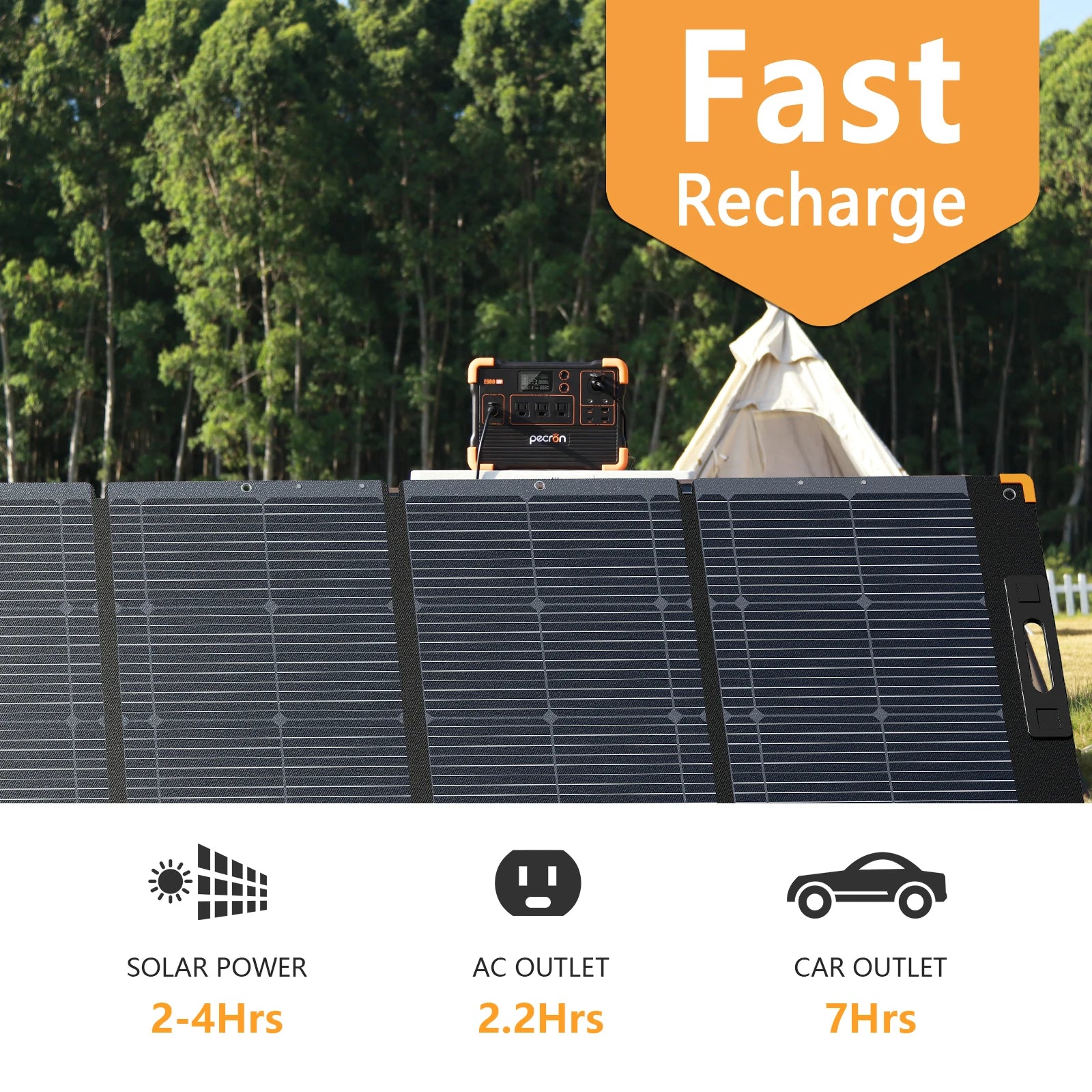

• Super Fast Charging: E600LFP portable power station advanced charging technology allows you to fully charge in about 2.2 hours through a standard wall outlet; Fast solar charging with a built-in MPPT controller (solar panel sold separately); Convenient for indoor and outdoor use.

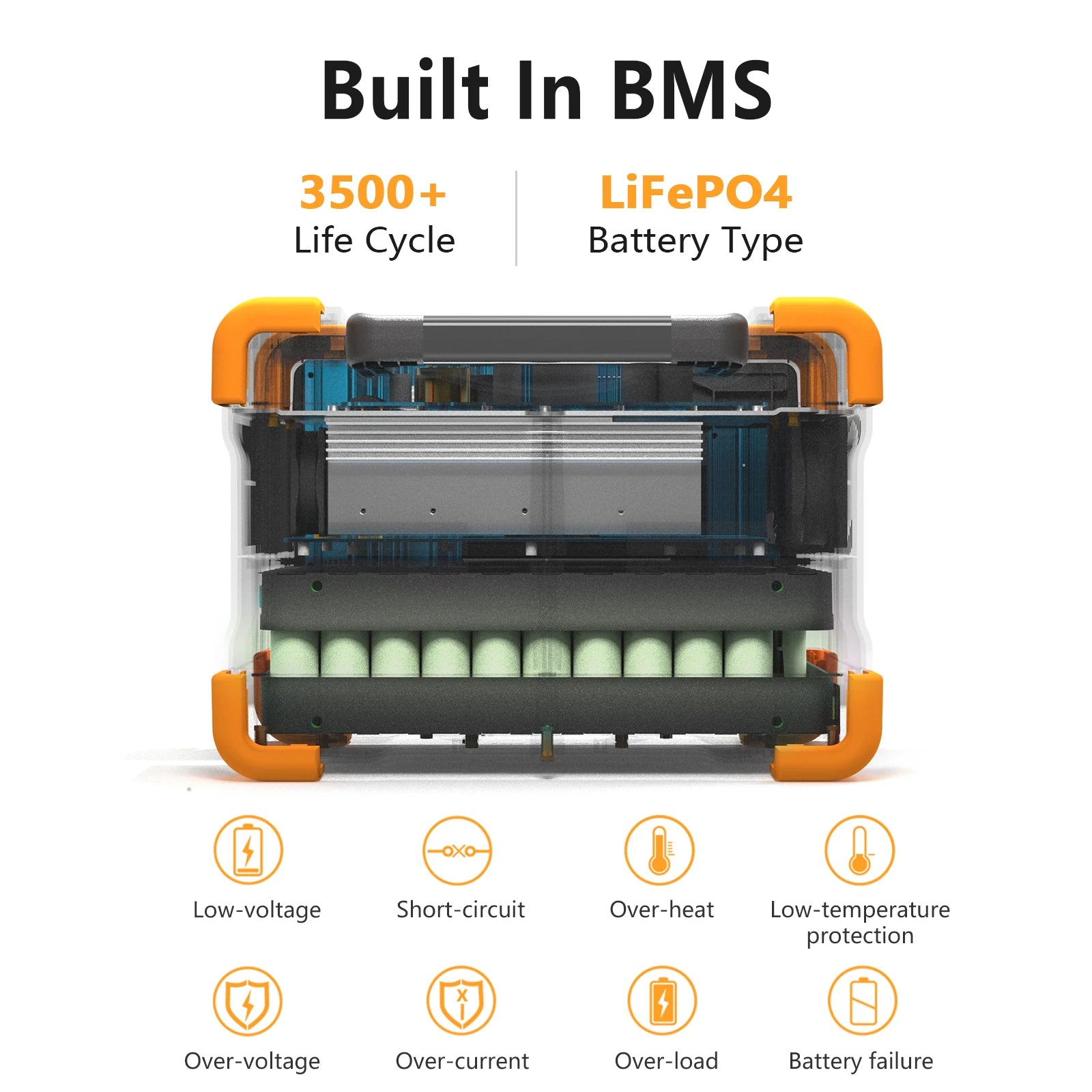

• Safety &Durable: The ultra-safe LiFePO4 battery with Built-in BMS assures the self-protection of short circuits, overloads, and overheating. 120V Pure-sine wave inverter makes sure there is no damage to your sensitive electronic devices

POWER OUTDOOR

POWER INDOOR

SMALL SIZE LARGE CAPACITY

SAFE & RELIABLE

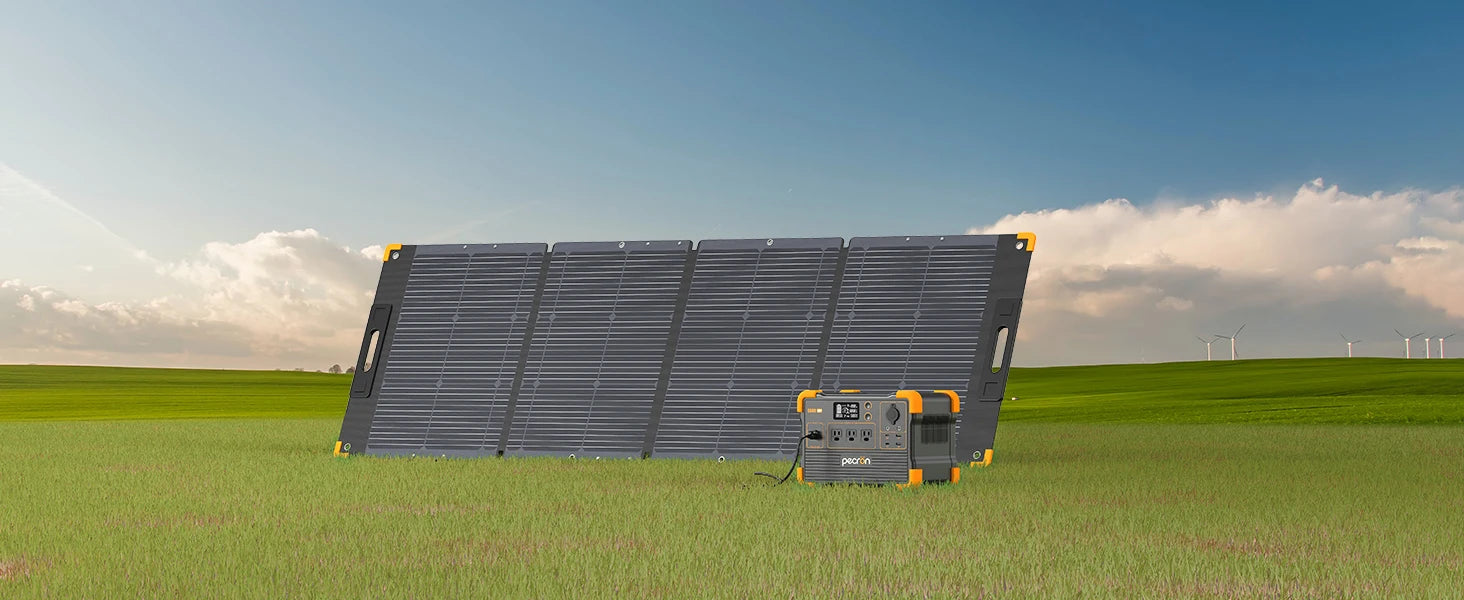

SOLAR CHARGING

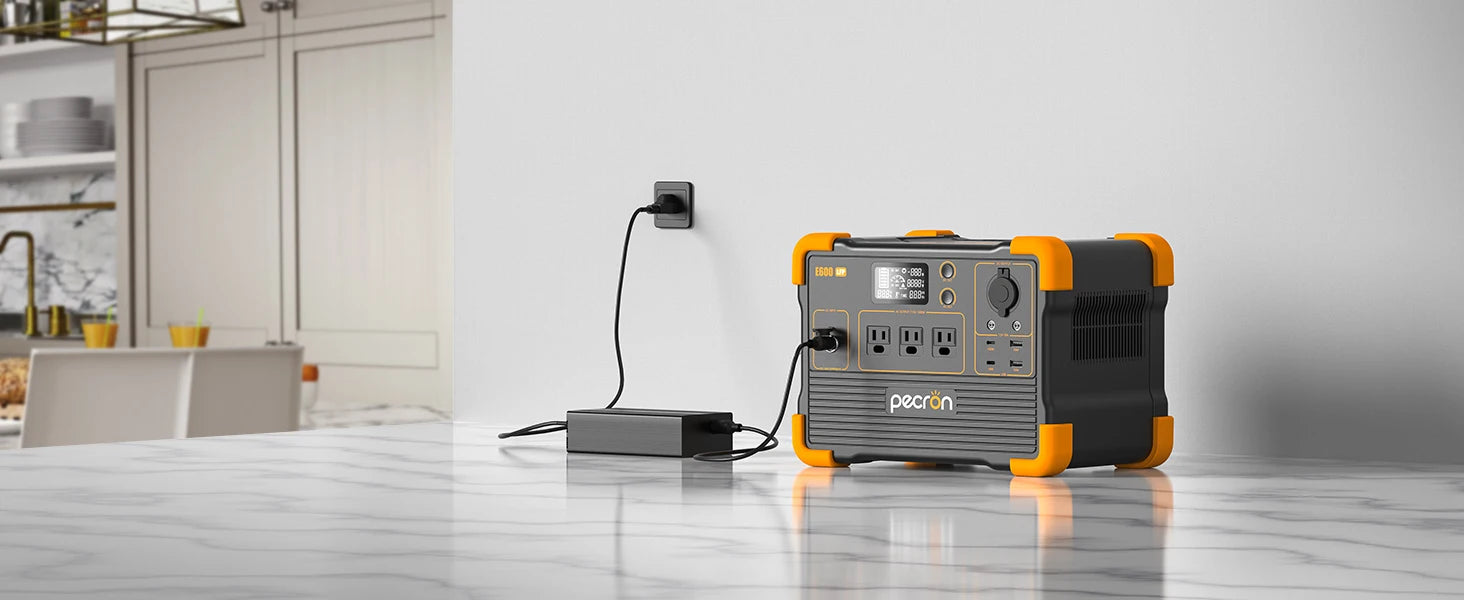

WALL CHARGING

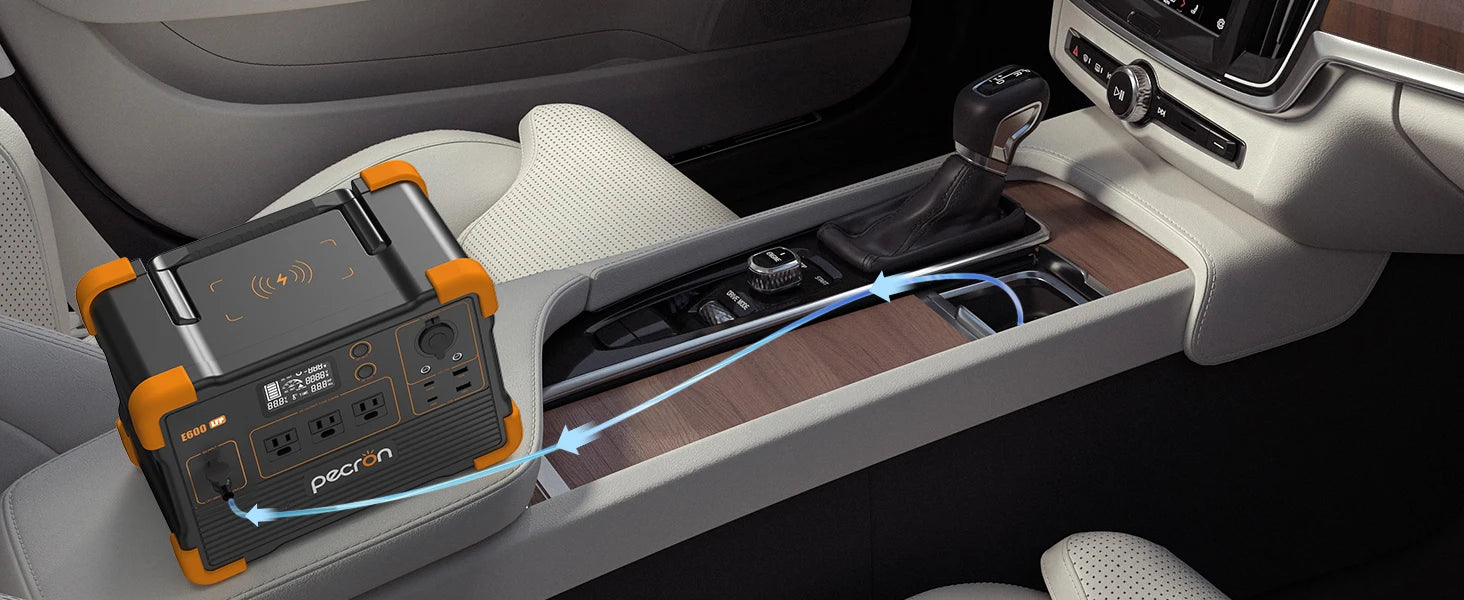

CAR CHARGING

Specifications:

• Style: 1200W 614Wh（25.6V/24Ah）

• Charging Type: AC Charging; Solar Charging; Car Charging; Hybrid Charging

• Battery Type: LiFePO4 (3500+ Cycles to 80%)

• AC Adapter Input: 100Vac~120Vac . Output：42V⎓7A

• PV Input:Voc 10V~60V / 350W Max / 10A Max

• Car Input: DC 12~18V--100W(Max)

• AC Output: 120Vac / 60Hz / 1200Watts

• DC Output: 1x12V Car; 2x12V DC5525; 2xUSB-C; 2xUSB-A·

• Wireless Charging Pad

• USB Output: 1 x 100W PD, 3 x 18W,

• Wireless Charging Pad: 15W Max.

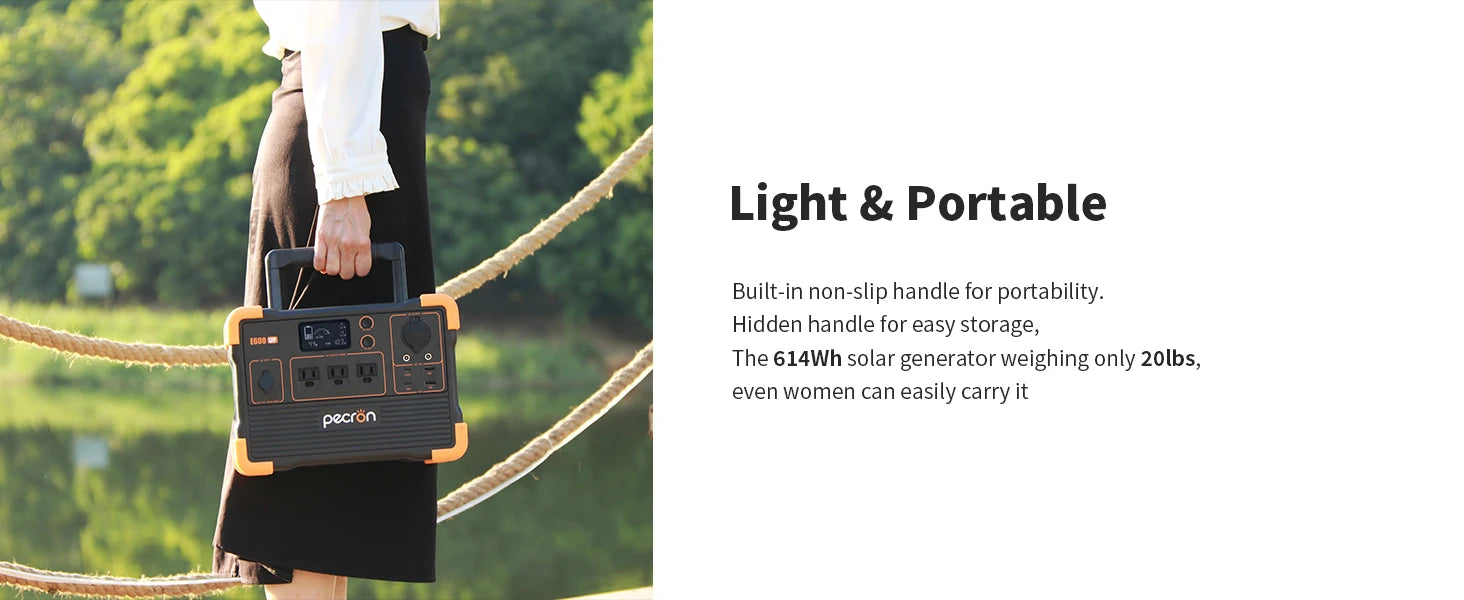

• Weight: About 9.4KG/About 20lbs

• Dimensions: L298xW198xH215mm；L11.7xW7.8xH8.5in

• Charge Temperature: 0°C~45°C / 32°F-113°F

• Discharge Temperature: -20°C~45°C / -4°F-113°F

Packing List:

• E600LFP portable power station*1

• Power adapter*1

• Car Charger cable*1

• MC4 port to 5-Pin Solar Charging Cable*1

• User manua1*1

FAQS:

Q1: What kind of battery is used in E600 LFP? How long it can last?

A:E600 LFP utilizes high quality UL certified automotive LiFePO4 battery, it can retain 80% of its original capacity at 3500 complete charge cycles.

Q2:What devices can E600 LFP power?

A:The AC output ports can power appliances which use less than 1200 watts of electricity. However, inductive types of loads such as freezer, fridge, compressor, motor require a much higher power to start (approx. 3-7 time lager than itsrated power).The DC output ports can supply a maximum DC power of 120W(12V/10A).

Q3:Can the E600 LFP be charged while discharging?

A:Yes, E600 LFP can run devices while it is being charged. The battery will eventually run out if the discharging is greater than the charging during the pass through charging.

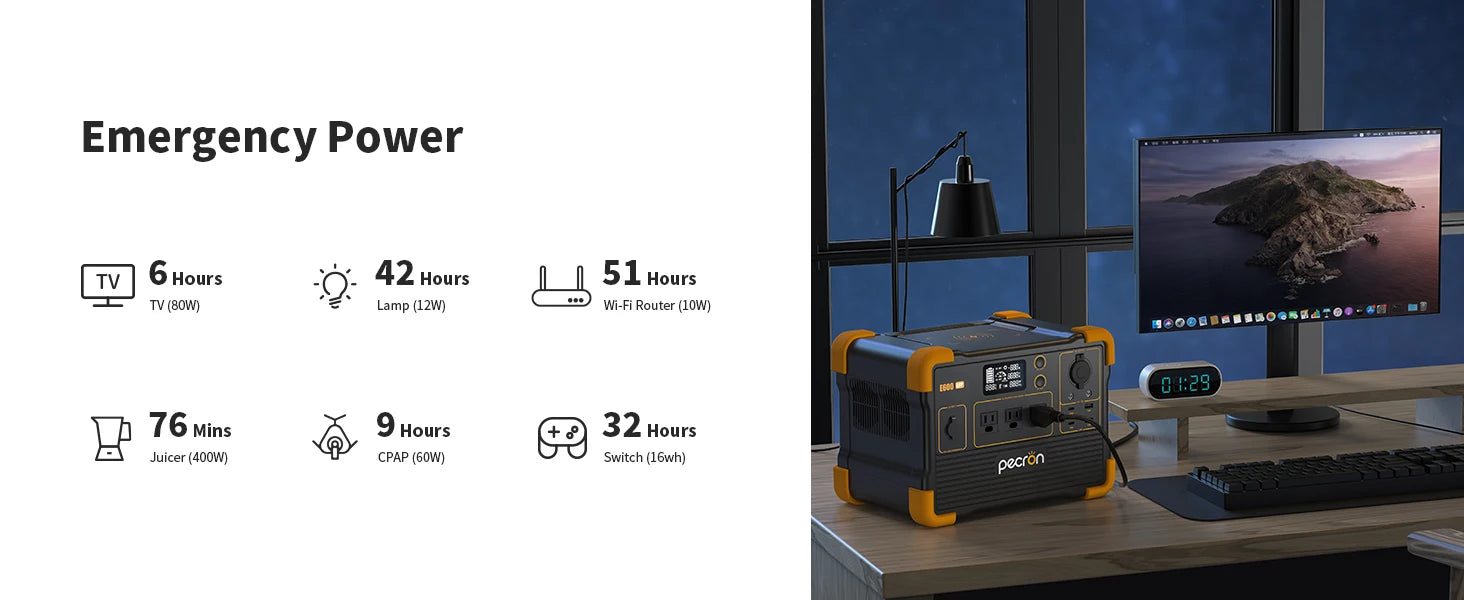

Q4:How to calculate the E600 LFP running time?

A:Running Time=Total Capacity(614Wh) * 0.85 (Depth of Discharge)/Loading Power(Watts)

Q5:Can I use the E600 LFP indoors and charge the E600 LFP indoors?

A:Yes, the E600 LFP is safe to use indoors.

Q6:Does E600 LFP have built-in MPPT controller?

A:es, there is one independent built-in MPPT controller; “GX16”port supports 10~60V(Max 350W) PV input.
