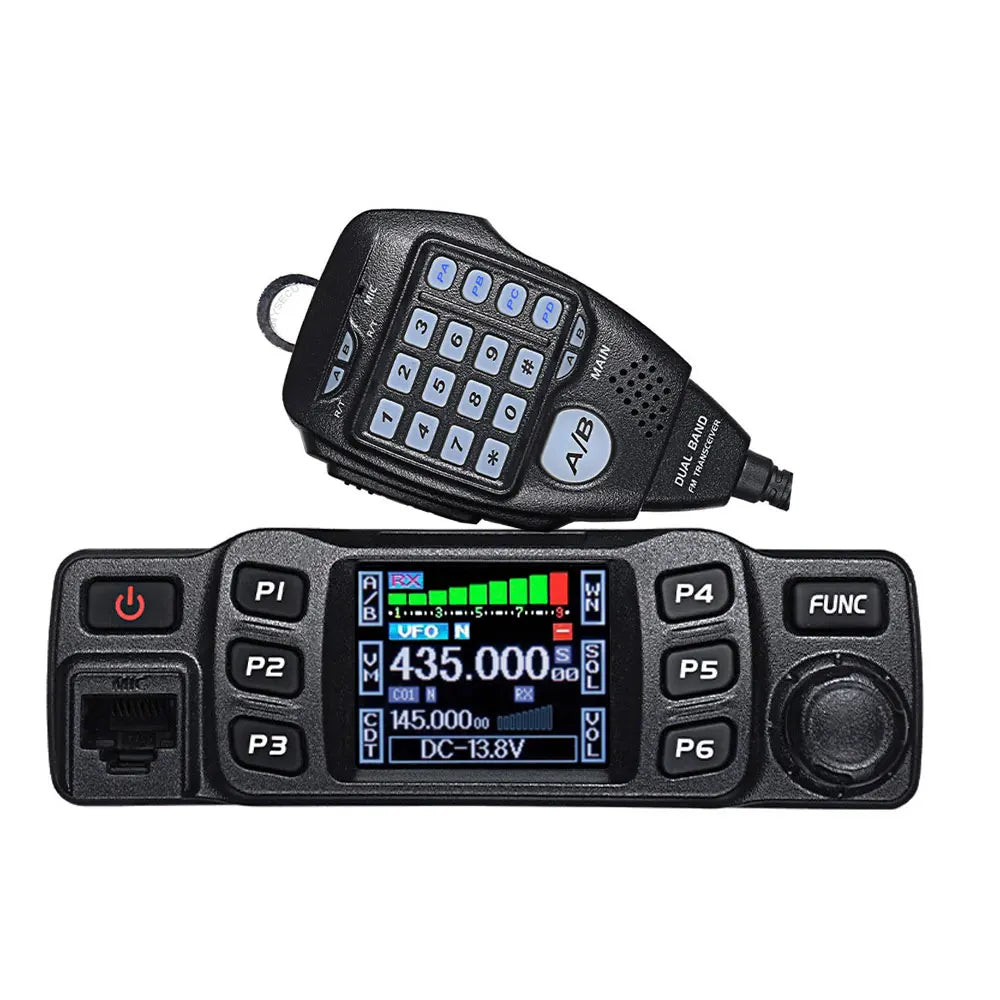

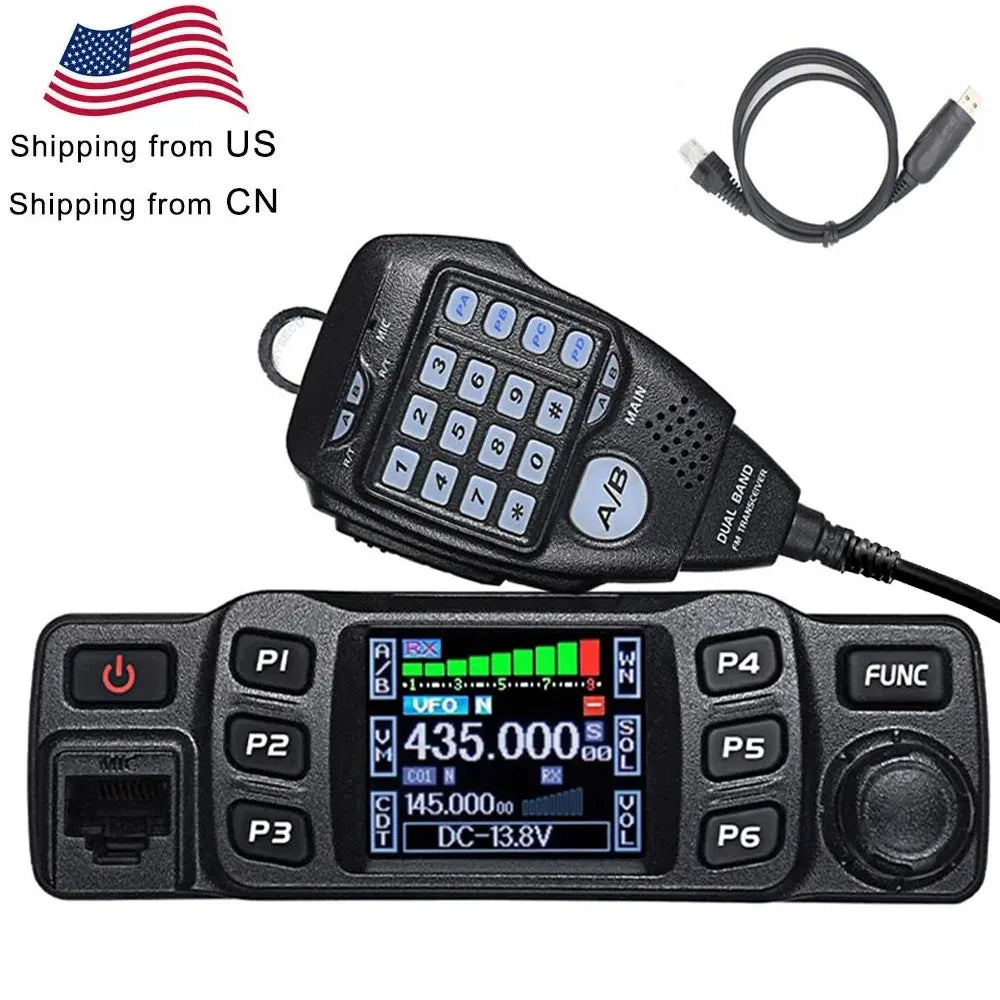

AnyTone AT-778UV 25W Dual Band 136-174 & 400-480MHz Amateur Radio 200 channels Walkie Talkie mini Mobile Radio

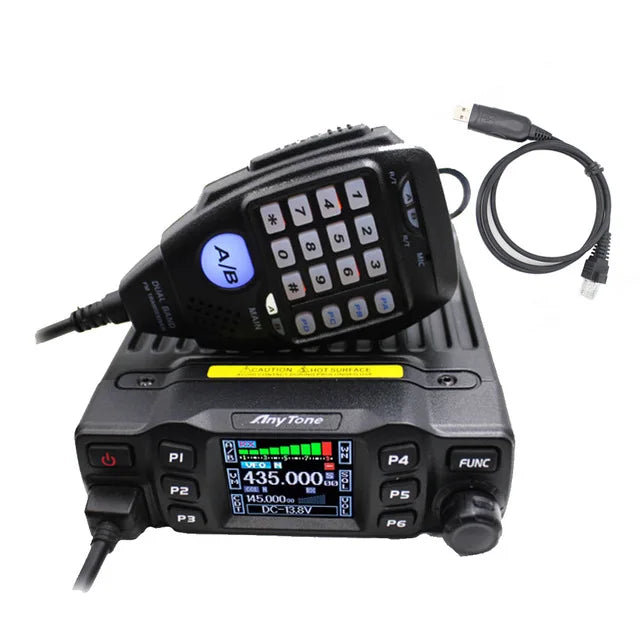

Note: if you need program sfotware, please contact me.

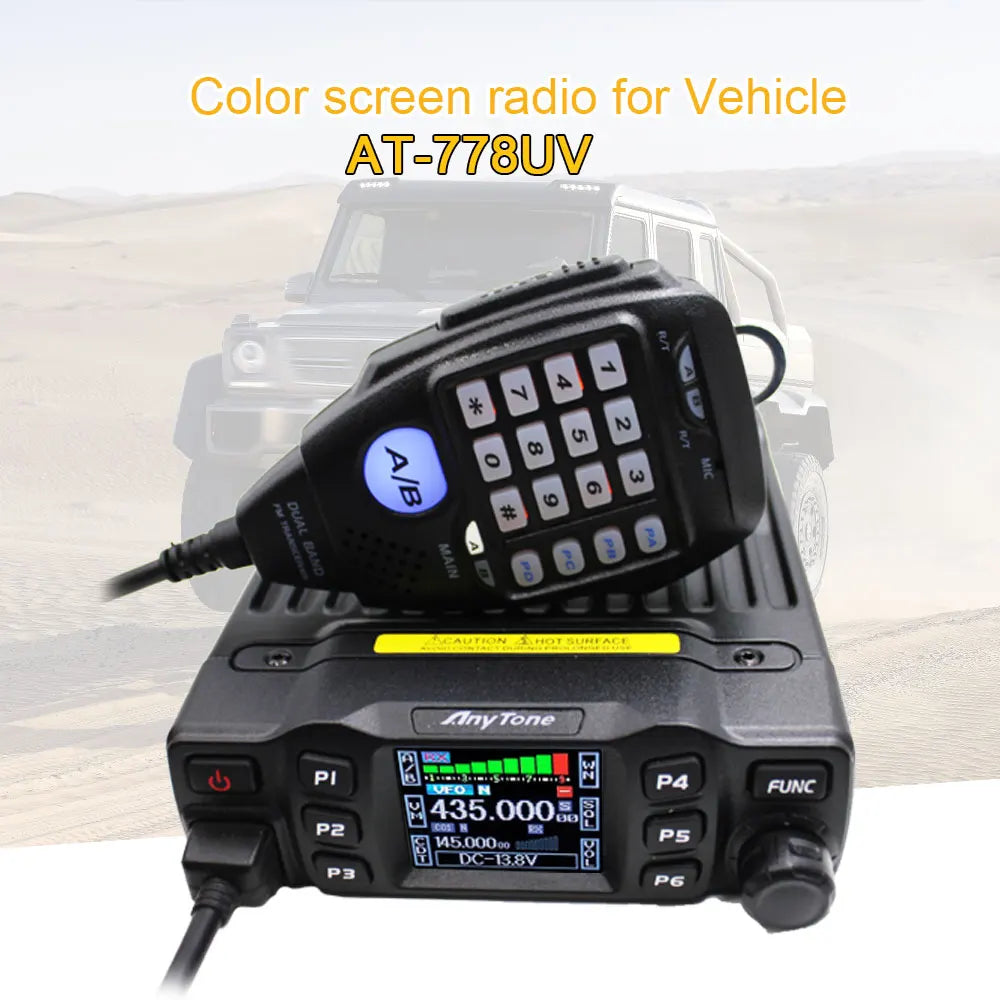

•       25W/15W/5W DualBand VHF/UHF Mobile Radio Transceiver! Color LCD. 180 degree rotatable TFT LCD display.

•       Frequency Range: VHF:136-174MHz UHF:400-480MHz

•       Features CTCSS, DCS, 200channels & more!

•       Single Call, Group Call, Selective Call and Emergency call are all available.

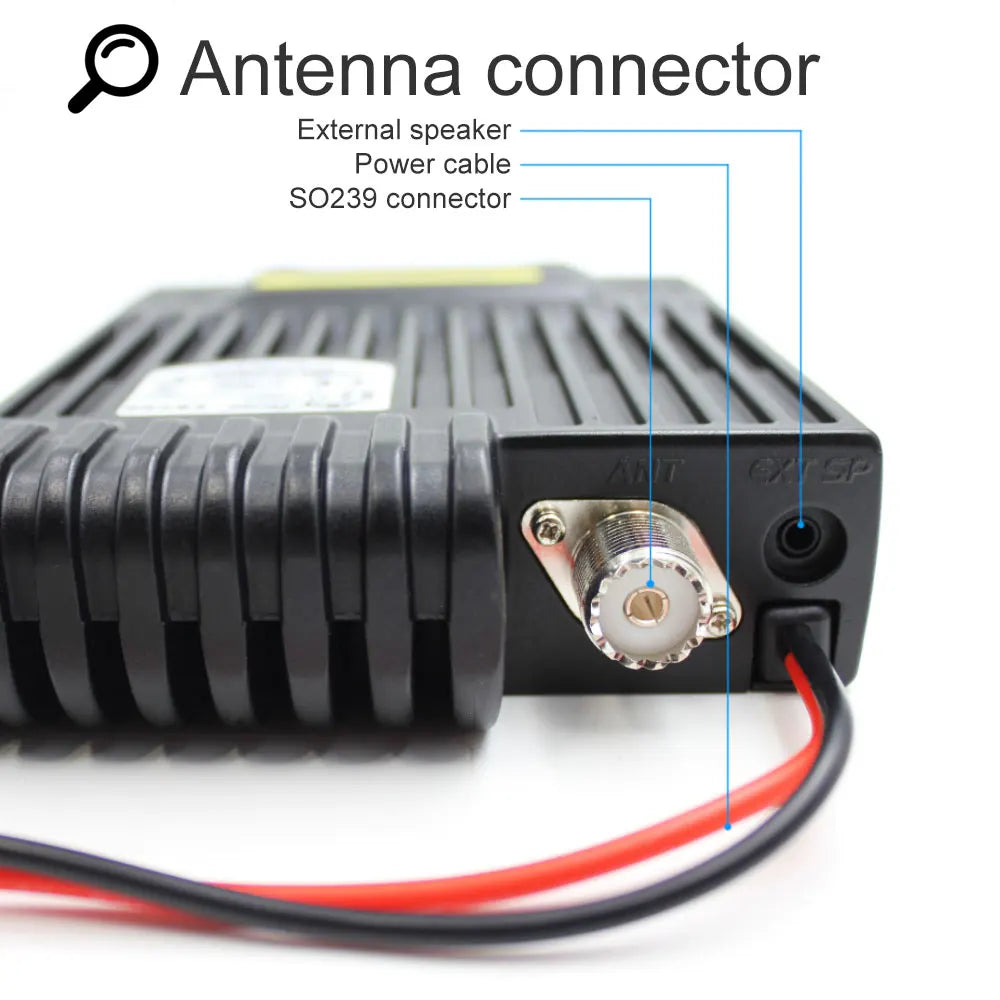

•       Narrow Band compliant,Lighted Keypad mic, Built-in Speakers in both Radio & Mic,Built-In cooling Fan,DC power cable with fuse holder & More!

Specifications:

General:

Frequency Range: VHF:136-174MHz UHF:400-480MHz

Number of Channels:200 channels

Channel Spacing:25K(Wide Band) 20K(Middle Band) 12.5K(Narrow Band)

Phase-locked Step:2.5KHz, 5KHz,6.25KHz,8.33KHz,10KHz,12.5KHz,20KHz, 25KHz,30KHz,50KHz

Operating Voltage:13.8V DC ± 15%

Squelch:Carrier/CTCSS/DCS

Frequency Stability:±5ppm

Operating Temperature:-20℃~+60℃

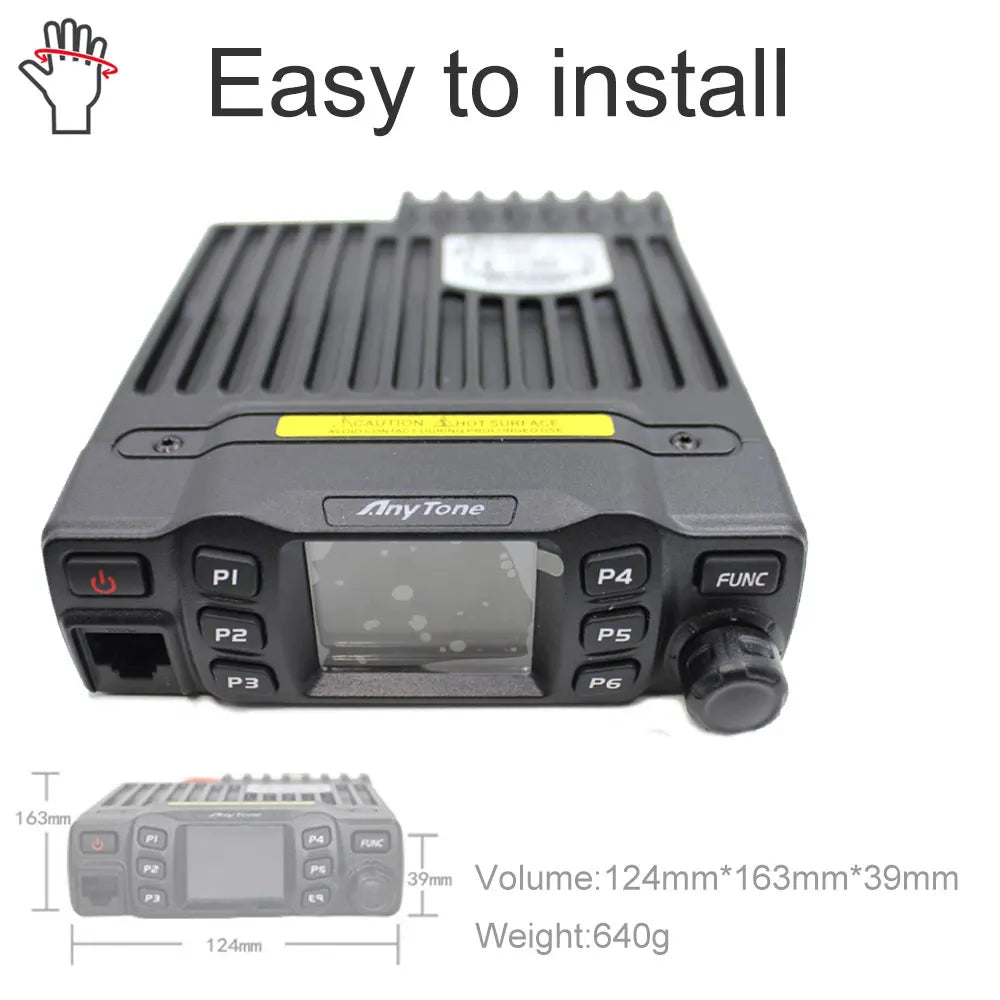

Dimensions(W*H*D)112(W)*30(H)*14.2(L)mm

Weight:About 0.51Kg

Receiver(ETSI EN 300086 standard testing)

Sensitivity(12dB Sinad): Wide band: ≤ 0.25μV Narrow band:≤ 0.35μV

Adjacent Channel Selectivity: Wide band: ≥60dB Narrow band:≥60dB

Audio Response Wide band: +1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～2.55KHz)

Hum&Noise :Wide band:≥45dB Narrow band:≥40dB

Audio distortion:≤5%

Audio power output:>2W@8Ω

Transmitter(ETSI EN 300 086 standard testing)

Power Output: Wide band:25W/15W/5W Narrow band:25W/15W/5W

Modulation:Wide band:16KΦF3E Narrow band:11KΦF3E

Adjacent Channel Power:Wide band:≥70dB Narrow band:≥60dB

Hum&Noise:Wide band:≥40dB Narrow band:≥36dB

Spurious Emission:Wide band:≥60dB Narrow band: ≥60dB

Audio Response:+1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～2.55KHz)

Audio Distortion:≤5%
