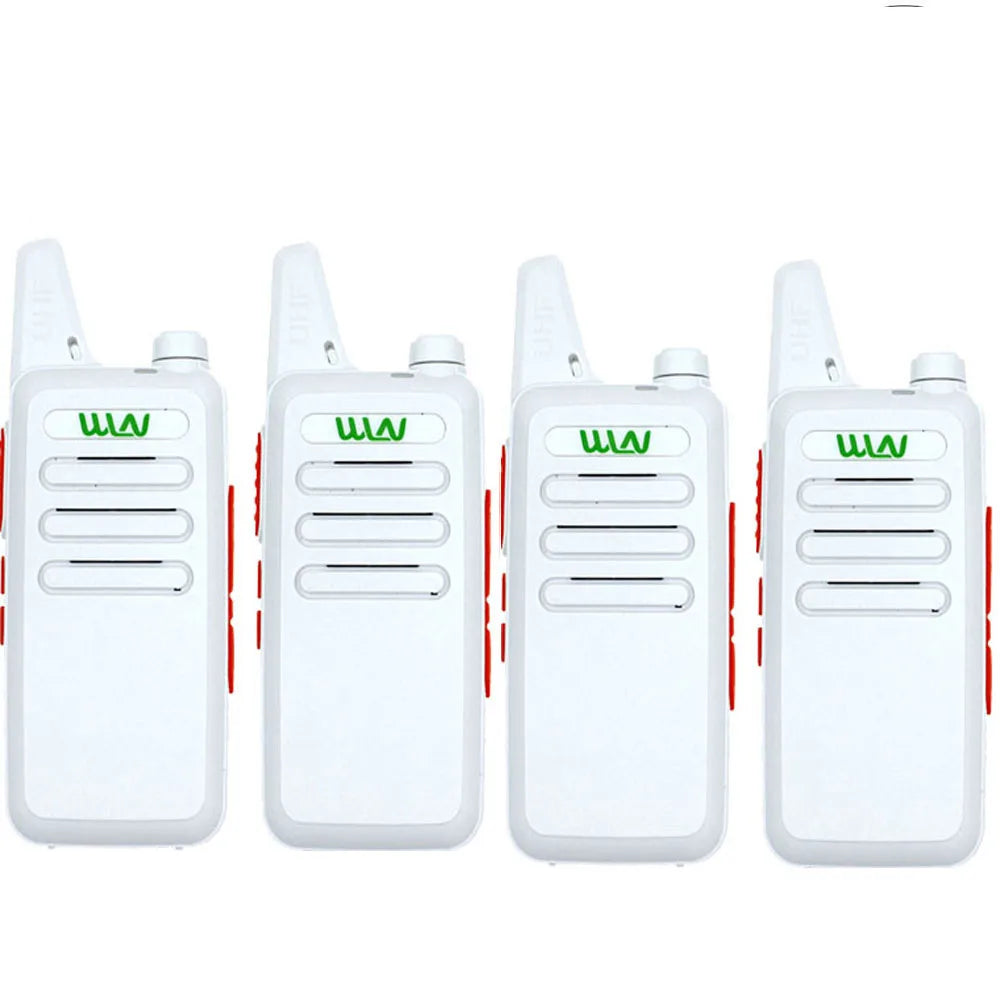

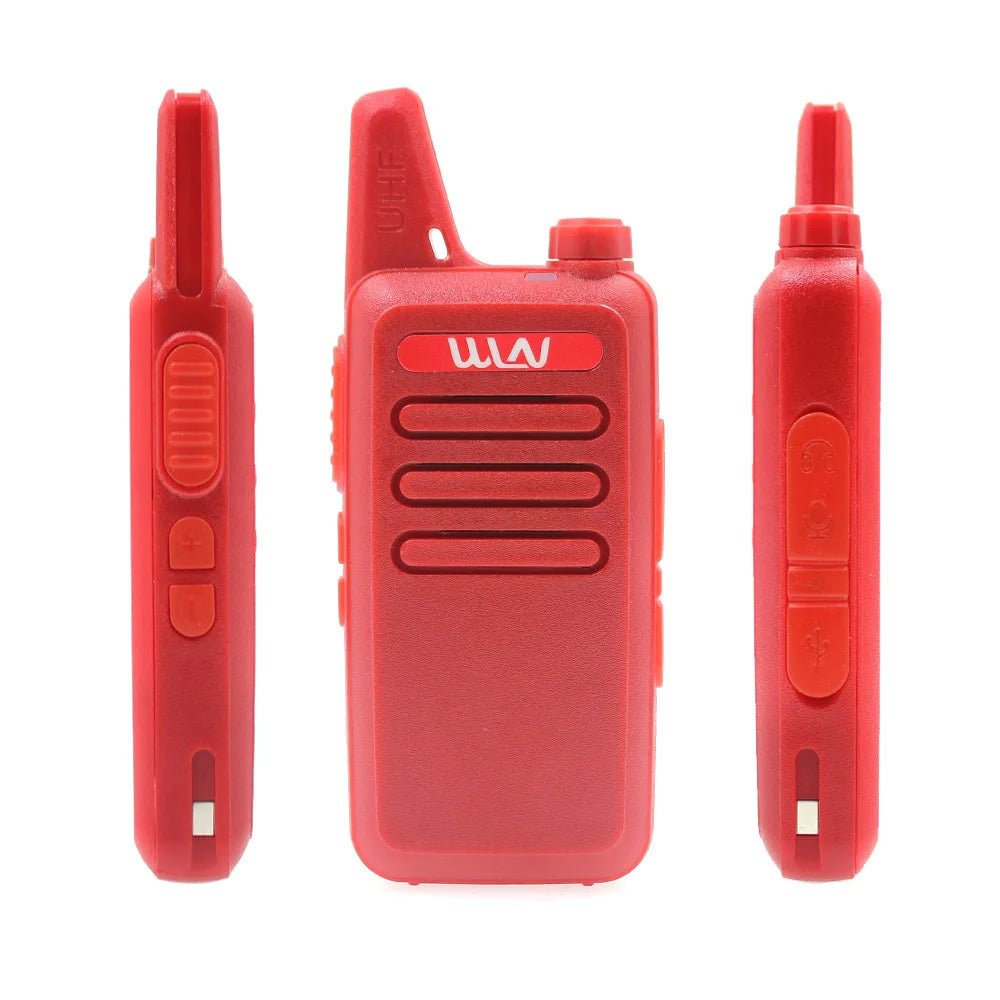

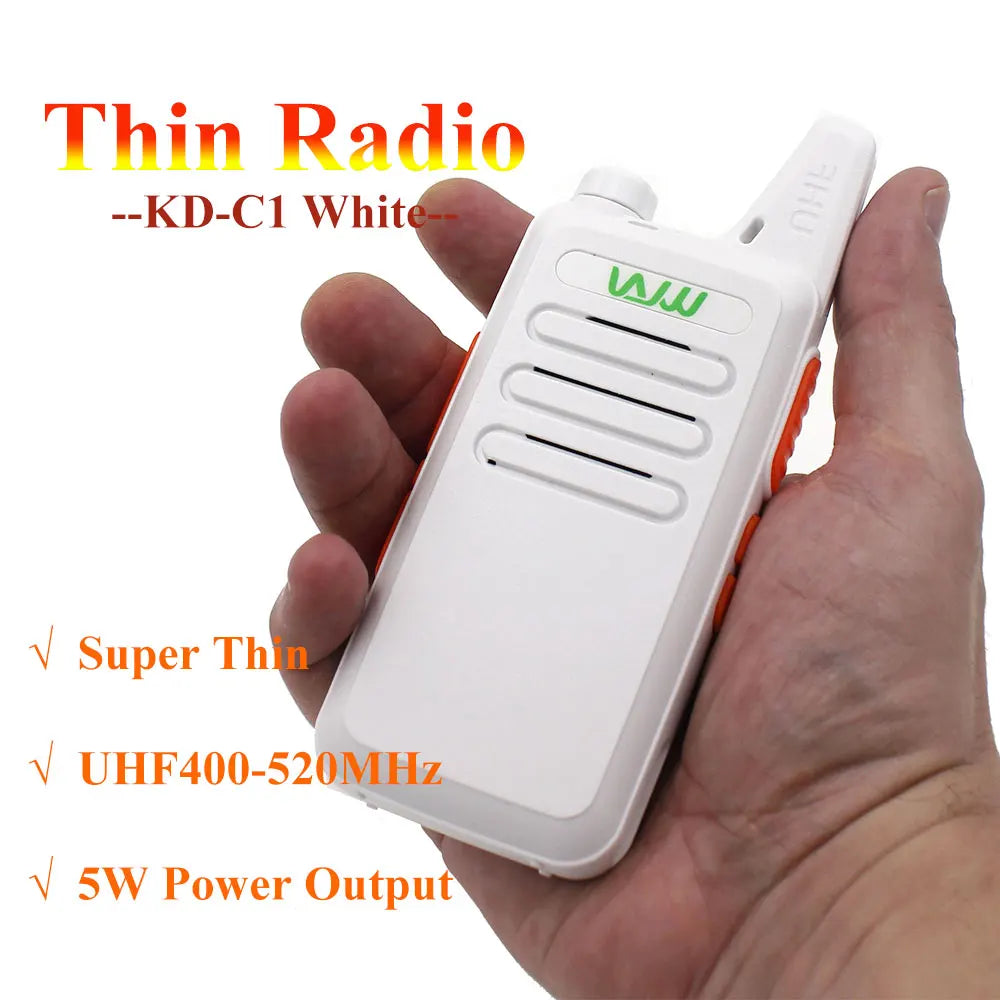

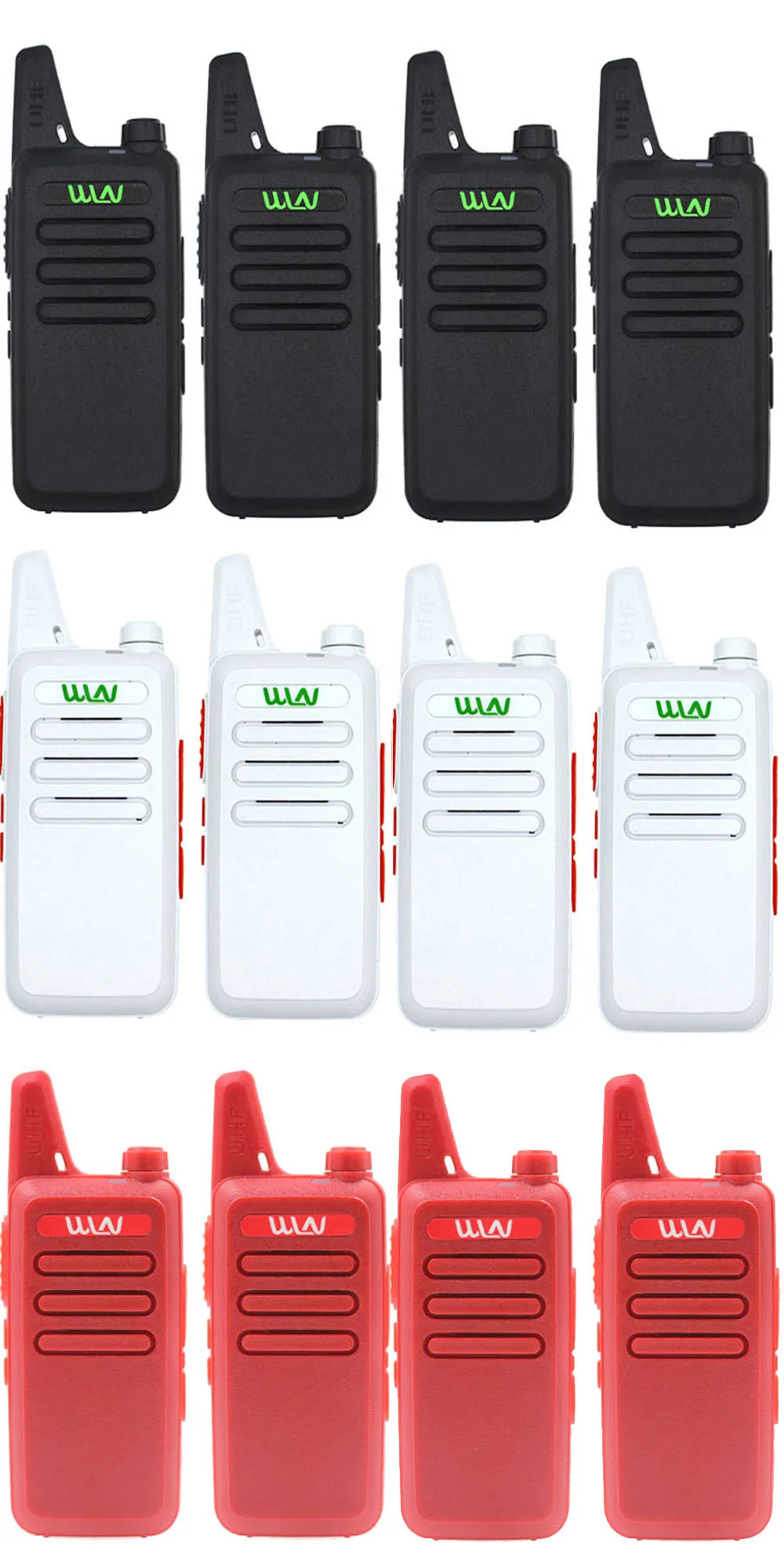

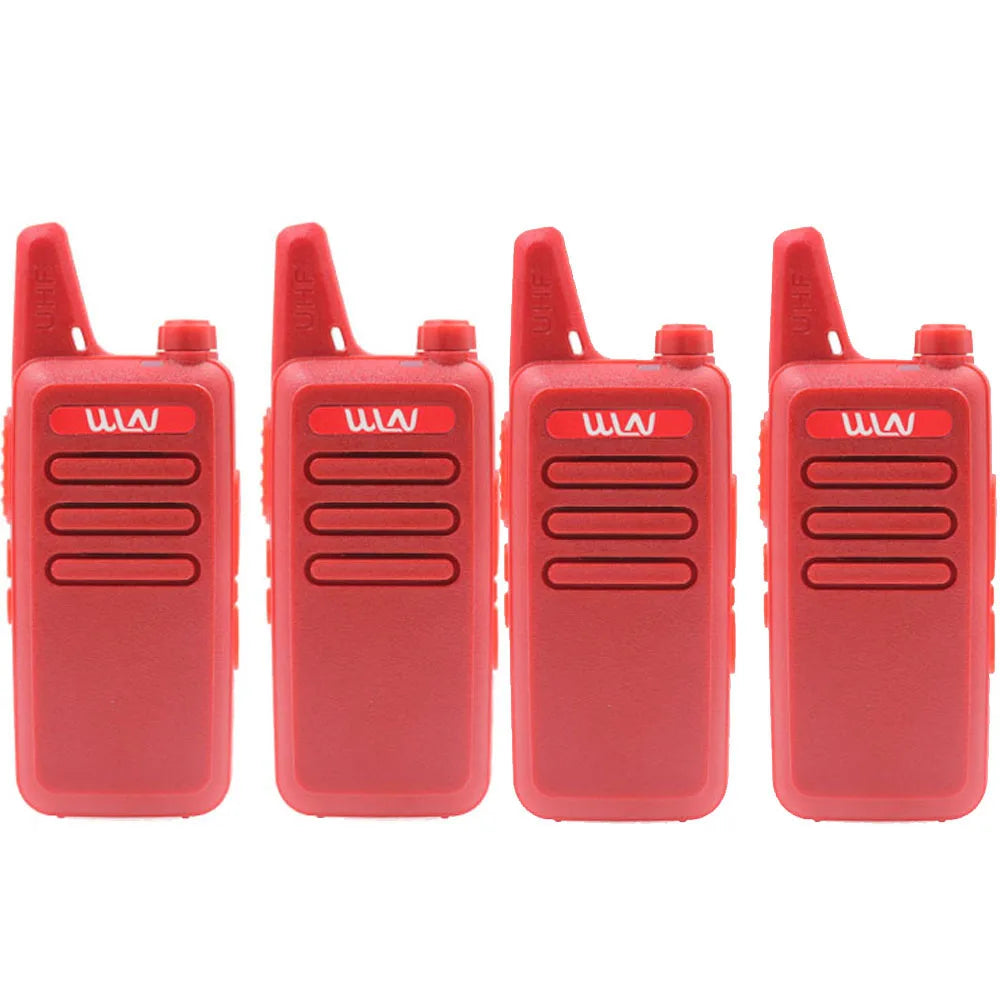

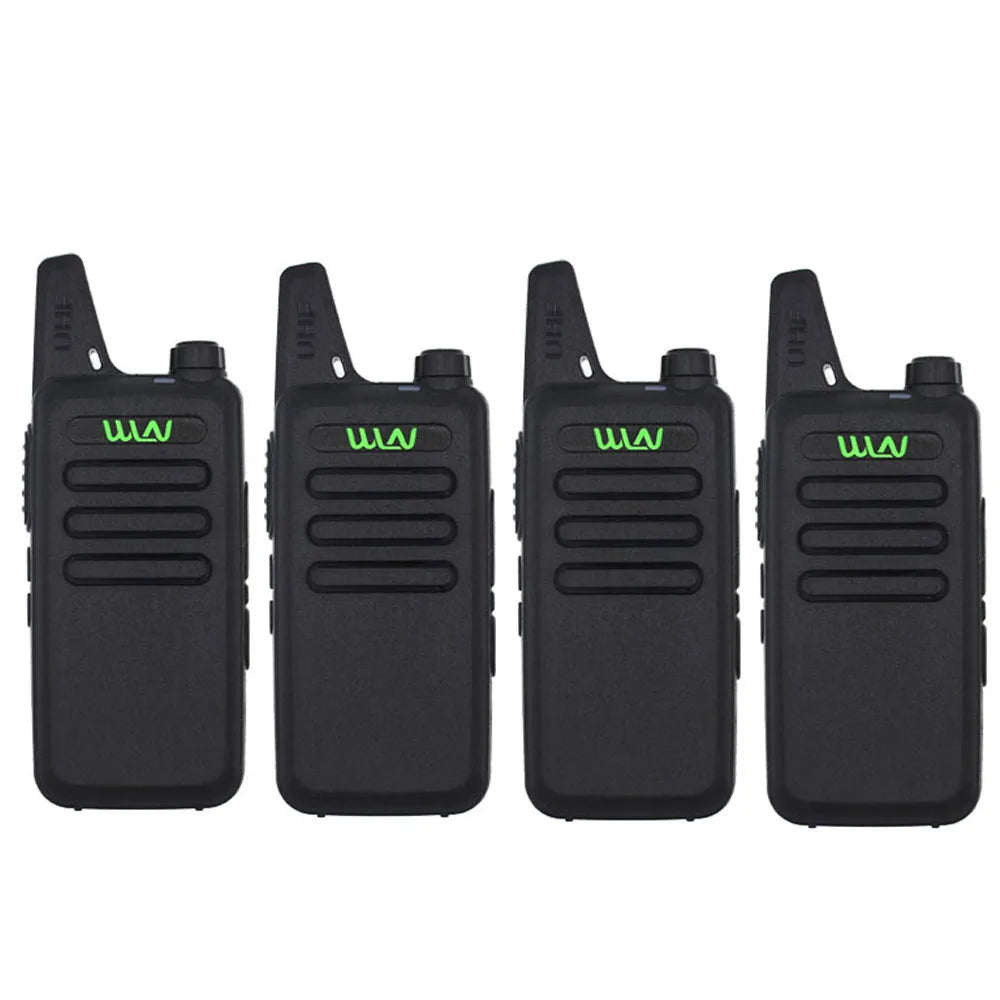

4PCS WLN KD-C1 Mini Portable Radio UHF 400-520MHz 5W walkie talkie 16 Channel UHF Transceiver

4PCS WLN KD-C1 Mini Portable Radio UHF 400-520MHz 5W walkie talkie 16 Channel UHF Transceiver

Sale Sold out
Regular price $106.24 USD
Regular price $120.72 USD Sale price $106.24 USD
Size

SPECIFICATIONS

Battery Capacity(mAh): 1500

Battery Included: Yes

Brand Name: ANYSECU

Certification: CE

Dimensions: 110*50*32 mm

Frequency Range: 400-520 MHz

High-concerned chemical: None

Is_Display: No

Material: plastic+metal

Maximum Range: 3km-5km

Model Number: 4xKD-C1

Origin: Mainland China

Output Power(w): 3w-5w

Storage Channel: 16

Use: others

Walkie Talkie Type: Portable

Waterproof / Water-Resistant: IP55

4PCS WLN KD-C1 mini radio UHF 400-520 MHz 5W portable walkie talkie 16 Channel UHF Transceiver







Note: if you need the software, please contact us.

Feature:

50 CTCSS/105 CDCSS

VOX Function

Voice Prompt

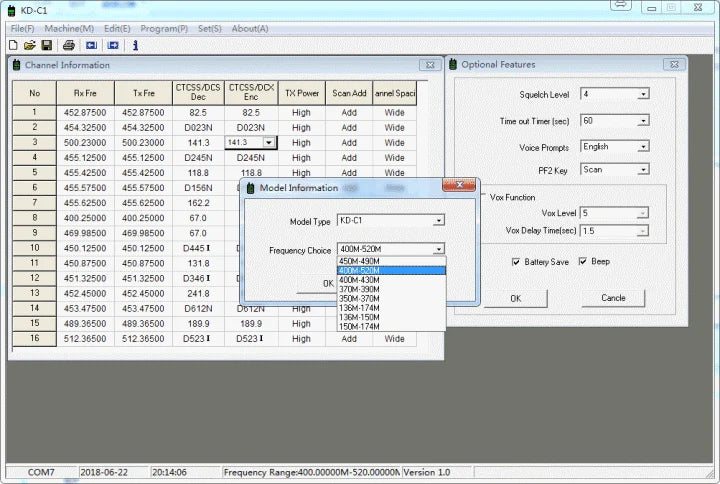

PC Programming

Emergency Alarm

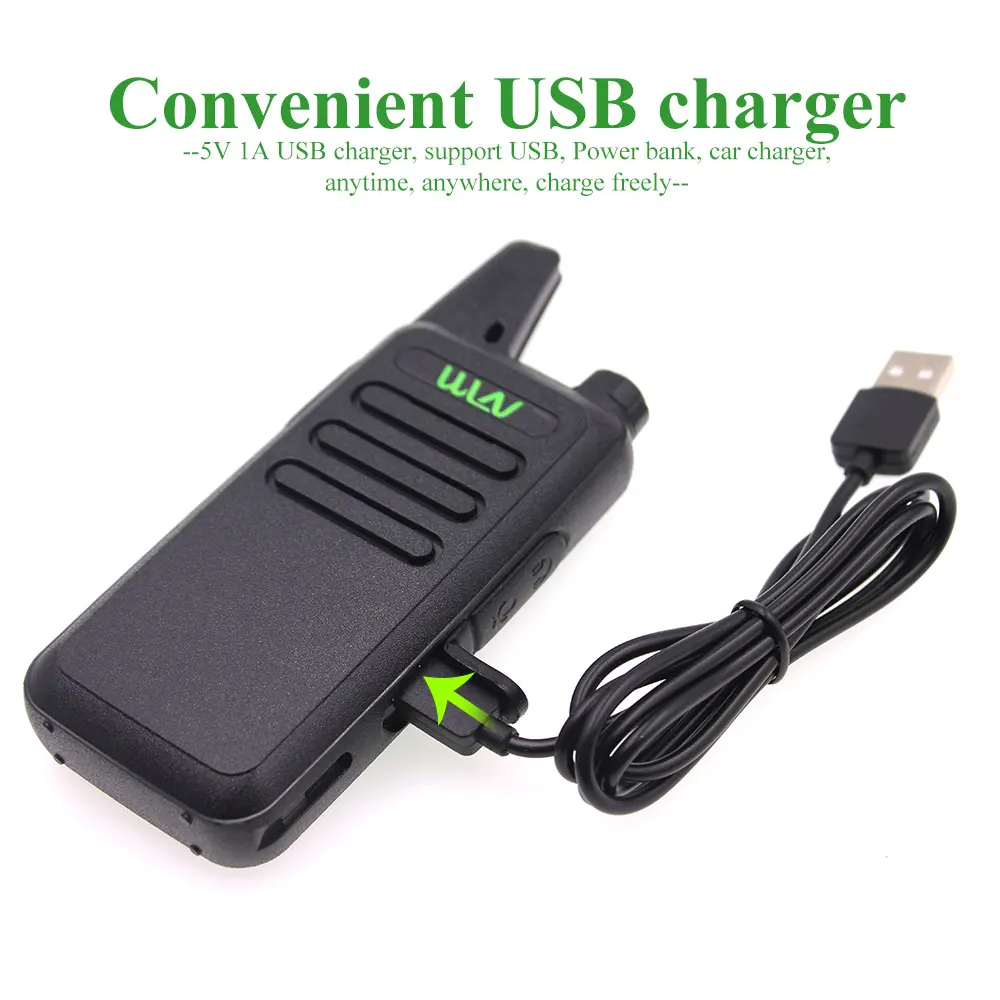

Intelligent Charging

Battery Save

Low Voltage Alert

Time-out Timer

Specification:

General Specifications

Frequency Range

UHF 400-520MHz

Channel Capacity

16

Channel Spacing

25KHz

Operated Voltage

3.7 V

Battery

1500MAh Li-ion

Battery Life(5-5-90 duty cycle) About 8 hours

Frequency Stability

±2.5ppm

Operated Temperature

-30°c-+60°c

Antenna Impedance

50Ω

Dimensions (L×W×H) (with battery,without antenna)

110×50×32 mm

Weight (with battery/antenna)

125g

Communication Range

about 6km

Transmitter

RF Power Output
Modulation

<5W
F3E

Spurious Emission

≤65dB

FM Noise

≤-45dB(W) ≤-40dB (N)

Audio Distortion

≤5%

Transmitting Current

≤1.3A

Receiver

Sensitivity (12dB SINAD)

≤0.20 uV

Selectivity

55dB/50dB

Intermodulation

≥65dB

Adjacent Channel Selectivity ≥60dB

Spurious Response

≥60dB

FM Noise

45dB/40dB

Audio Power Output

1000mW

Audio Distortion

≤5%

Standby Current

≈15mA (with battery save on)
